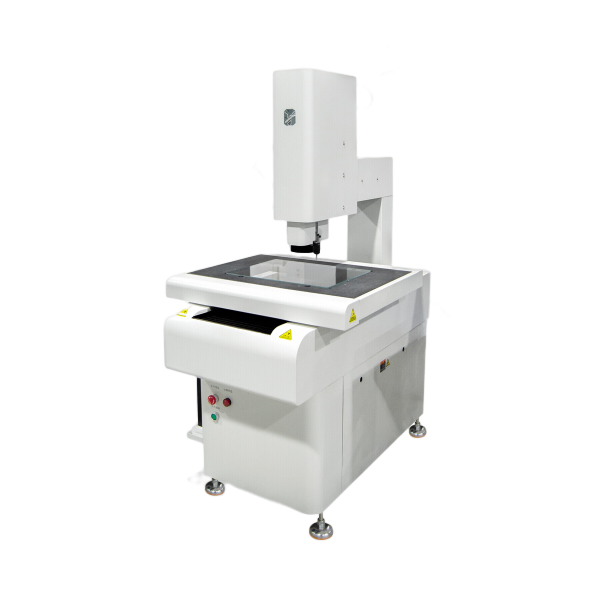

Jinuosh C400H Automatic Video Measuring System

Table size: 720 x 490

Stage glass size: 448 x 340

X-Y-Z Stroke: 400 x 300 x 200

Accuracy:

E1X, E1Y: Linear Accuracy: (2.8+L/200) µm; with probe (4.3+L/200) µm (L = length between two arbitrary points mm)

Vector Accuracy: (3.5+L/200) µm (L = length between two arbitrary points mm)

E1Z: ≤5µm (standard checking) (L = length between two arbitrary points mm)

Observation and Image:

1/1.7"GIGE Color Camera, 2MP

Working distance: 90mm

Zoom Lens: 0.7X - 4.5X

Monitor magnification:28X - 164X

Jinuosh 3D Automatic Measurement (with probe function) Software

Probe MCP: Renishaw probe Kit (A-1311-0096)

Max loading weight (Kg): 20

Net Weight (Kg): 408

Packing Weight (Kg): 488

Machine Dimensions (mm): 875 x 1142 x 1591

Packing Dimensions (mm): 1480 x 1320 x 1900

Illumination unit:

White LED transmission light source

White LED 4-ring 8-area programmable ring light source

Instrument power sources: 220V (AC) 50Hz
