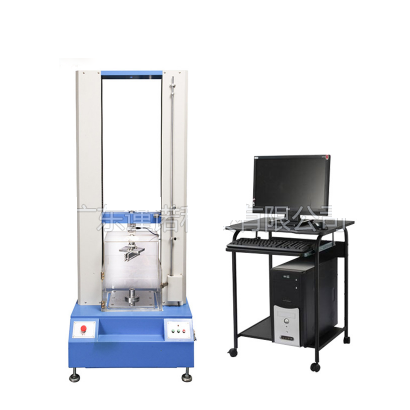

Jinuosh L-SFC001 Computer Tension Machine (2000kg, 800mm)

Capacity specification: 2000kg

Unit of force value: N, KN, Kgf, Lbf,

Length unit: mm, cm, in can be converted freely

Speed accuracy: ±0.5%,

Load precision: ±0.25%,

Load induction: high precision tension and pressure transmitter

Transmission rod: high precision ball screw

Motor: Servo motor

High resolution: 1/200,000

Test speed: 1-500mm/min stepless speed regulation

Standard type of effective width :400mm(customizable)

Standard distance between beam and workbench :1100mm (can be customized)

Test stroke (including fixture) Standard type :800mm (specific related to fixture requirements)

Effective stretch space: 950mm

Effective compression space: 700mm

Overload protection function: the system will be automatically shut down for protection when the set test force exceeds 10%

Power: 1.10 kW

Power supply :220 VAC,50/60Hz

Weight: 200kg for the main engine

Basic configuration

Host machine: one

Panasonic servo motor: one set

Panasonic servo Drive: one set

Us import sensor: one

Precision screw: one set

Photoelectric encoder: one

Lenovo computers: one set

HP color inkjet printer: one

Fixtures: a set of two wedge-shaped fixtures, and a set of two winding fixtures

Computer operating system and computer system software: one set each

Auxiliary tools: a set of hexagon wrench
