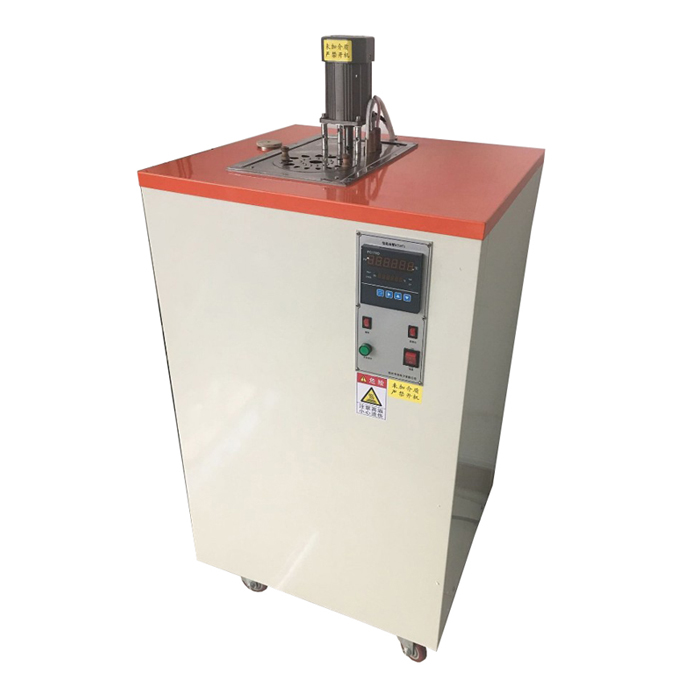

JINKO JKS-300A High Temperature Verification Thermostat (+15°C ~ 300°C)

Temperature range: Room temperature +15°C ~ 300°C

Temperature fluctuation: ≤±0.01°C/30min

Temperature uniformity: ≤±0.005°C - 0.01°C

Vertical and horizontal error: ≤±0.01°C

Dimension (mm): 750*550*1200

Work area size (mm): 150*480

Heating and cooling time: ≤100 min

Power (kW): 1.6

Power supply: 220V 50Hz

Weight (kg): 75

Medium: Salad oil (operation temperature range 100-200°C), Methyl silicone oil (100-300°C)

Product description:

High temperature control accuracy and uniform temperature field. JKS-300B type high temperature verification constant temperature tank with oil tank automatic pump oil system can adjust the oil temperature in the tank at will. It is an environmentally friendly product, which is more convenient to operate and more efficient. The box and tank are made of all stainless steel, and the side hanging structure of the control system is adopted to make the overall shape more compact. The inner liner is stainless steel, and the outer shell is made of stainless steel porcelain. Intelligent microcomputer temperature control, can be equipped with RS-485 communication interface.

Main application:

It is suitable for various measurement, biochemical, petroleum, meteorological, energy, environmental protection, pharmaceutical and other departments and manufacturers of thermometers, temperature controllers, temperature sensors and other manufacturers to detect physical parameters. It can also provide a constant temperature source for other experimental research work.
