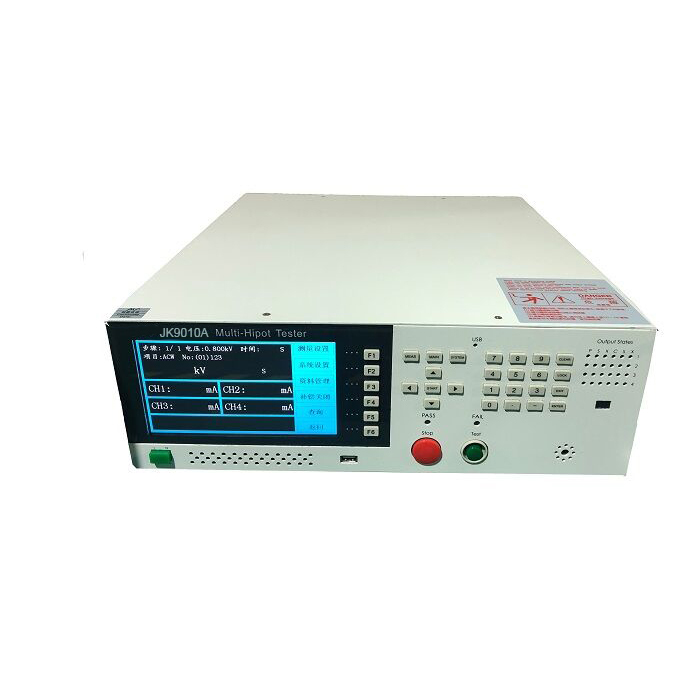

JINKO JK9010A Multi-Hipot Tester (0.10kV - 1.00kV, 1MΩ-9999MΩ)

Hi-pot

Output Voltage:

AC:

Range: 0.05 – 5.00kV

Accuracy: ±(2% Reading + 5 dgts)

Frequency: 50Hz/60Hz

DC:

Range: 0.05 – 6.00kV

Accuracy: ±(2% Reading + 5 dgts)

Voltage Adjustment Rate: ≤(1% - 5V) (rated power)

Electric Current Test:

AC:

Range: 0.000mA - 20.00mA

Accuracy: ±(2% Reading + 2 dgts)

DC:

Range: 0uA - 10.00mA

Accuracy: ±(2% Reading + 2 dgts)

Discharge Function: Fast automatic discharge after test

Insulation Resistance Test:

Output Voltage: 0.10kV - 1.00kV

Accuracy: ±(2% Reading + 2V)

Resistance Test Range: 1MΩ - 9999MΩ

Resistance Test Accuracy:

500V - 1000V:

1MΩ - 1000MΩ: ±(5% Reading + 2 dgts)

1000MΩ - 9999MΩ: ±(10% Reading + 2 dgts)

100V - 500V:

1MΩ - 1000MΩ: ±(10% Reading + 2 dgts)

Open Circuit Detection Function: Determining whether the object to be measured is open based on open-circuit capacitance

Discharge Function: Automatic discharge after test

ARC Detector:

Test Range:

AC: Level 1-9 (Corresponding current 20mA, 18mA, 16mA, 14mA, 12mA, 10mA, 7.7mA, 5.5mA, 2.8mA)

DC: Level 1-9 (Corresponding current 20mA, 18mA, 16mA, 14mA, 12mA, 10mA, 7.7mA, 5.5mA, 2.8mA)

Other Parameters:

Output Channel: 4 channels (4 optional points) Synchronized measurement (high voltage); 4 channels, High and low pressure: 4 channels, low pressure: 4 channels

Storage: 20 groups

Voltage Rise Time: 0.1s - 999.9s

Test Time Setting (AC/DC): 0.2s - 999.9s

Voltage Drop Time: 0.1s - 999.9s

Waiting Time (IR): 0.2s - 999.9s

Time Accuracy: ±(1% + 0.1s)

Communication Interface:

Standard: HANDLER, RS232, USB

External Dimensions: 426 (W) × 142 (H) × 470 (D) mm (Rated value)

Weight: 20kg (Rated value)

Display: LCD, 800×480 (pixel), RGB color, can display the following items: measurement value, measurement conditions, comparator limits and judgment results, list scan table, and self-check message.

JK9010A series of voltage withstanding testers is a new type of machine developed to meet the needs of customer automation.Four products can be tested at a time, and each test result is a single signal.Good/bad product signals can be judged independently, avoiding that conventional parallel testing can not be judged independently.

Performance characteristics:

*AC/DC voltage withstanding, insulation resistance testing three-in-one model

*Programmable output voltage AC5KV， DC6KV

*Programmable current maximum AC20mA ，DC10mA

*Insulation impedance10GΩ

*Open/Short Circuit Detection Test Function（OSC）

*Human body protection function（GFI）

*Electrical flashover detection function（FLASHOVER）

*Multiple output modes can be combined

*Can output good/bad product signals to products (up to four groups)

*Storage of 50 sets of data

*Handler signal output, suitable for PLC software editing

*Standard RS-232 interface

*USB storage
