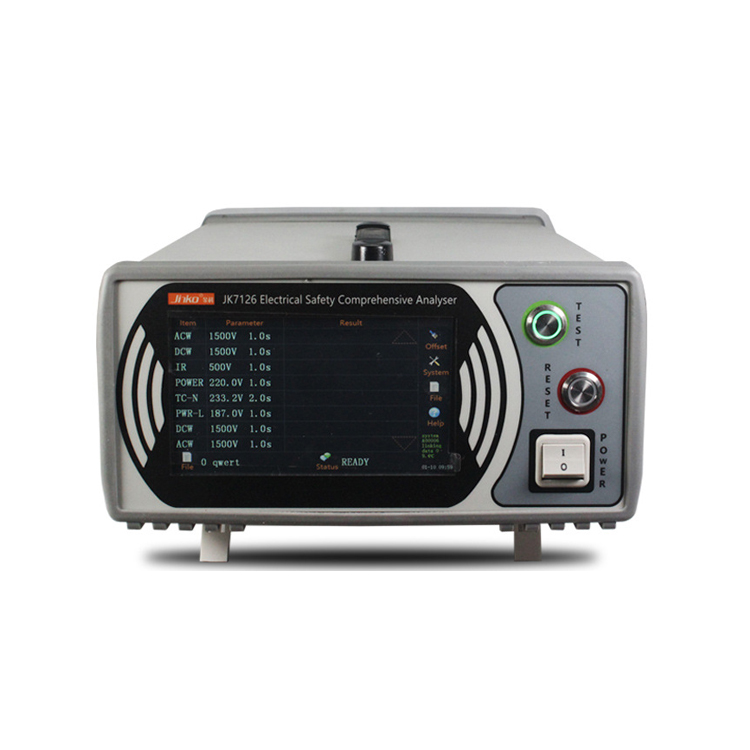

JINKO JK7126 Electrical Safety Comprehensive Analyzer Hipot tester (30.0～300.0V, 16.000A)

AC Withstand Voltage Test:

Output Voltage: 300~5000VAC

Resolution: 1V

Accuracy: ±(1% rdg. + 5V)

Output Frequency: 50/60Hz

Breakdown Current: 0~100.00mA, short time 200mA peak value

Resolution: 0.001mA/0.01mA

Accuracy: ±(1% + 0.002mA)

Ramp Up Time: 0~999.9s

Resolution: 0.1s

Accuracy: ±(1% + 0.1s)

Slow Down Time: 0~999.9s

Resolution: 0.1s

Accuracy: ±(1% + 0.1s)

Testing Time: 0.5~999.9s

Resolution: 0.1s

Accuracy: ±(1% + 0.1s)

Current Compensation: 0~99.999 mA

Resolution: 0.001mA/0.01mA

Arc Detection: 0~100.00mA

Resolution: 0.01mA

Accuracy: ±5%

DC Withstand Voltage Test:

Output Voltage: 300~6000VDC

Resolution: 1V

Accuracy: ±(1% rdg. + 5V)

Breakdown Current: 0~9.999mA

Resolution: 0.001mA

Accuracy: ±(1% + 0.002mA)

Ramp Up Time: 0~999.9s

Resolution: 0.1s

Accuracy: ±(1% + 0.1s)

Slow Down Time: 0~999.9s

Resolution: 0.1s

Accuracy: ±(1% + 0.1s)

Testing Time: 0.5~999.9s

Resolution: 0.1s

Accuracy: ±(1% + 0.1s)

Insulation Resistance Test:

Output Voltage: 300~3000V

Resolution: 1V

Accuracy: ±(1% rdg. + 5V)

Insulation Resistance:

Range: 0.5M~999GΩ

Resolution: 0.01M/0.1M/1M/10M/100M/1G

0.60M~9.99M: ±(1% rdg. + 0.03M)

10.0MΩ~99.9MΩ: ±(3% rdg. + 0.3M)

100MΩ~9999MΩ: ±(5% rdg. + 3M)

10.0GΩ~100GΩ: ±(15% rdg. + 0.8G)

Ramp Up Time: 0~999.9s

Resolution: 0.1s

Accuracy: ±(1% + 0.1s)

Slow Down Time: 0~999.9s

Resolution: 0.1s

Accuracy: ±(1% + 0.1s)

Testing Time: 0.5~999.9s

Resolution: 0.1s

Accuracy: ±(1% + 0.1s)

Delay Time: 0~999.9s

Resolution: 0.1s

Accuracy: ±(1% + 0.1s)

Ground Resistance Test:

Output Current: 1.0~32.0A (Optional 42A)

Resolution: 0.1A

Accuracy: ±(1% rdg. + 0.2A)

Output Frequency: 50/60Hz

Ground Resistance: 10~600.0mΩ (Voltage not exceeding 12V)

Resolution: 0.1mΩ

Accuracy: ±(1% rdg. + 2.0mΩ)

Resistance Compensation: 0~600.0mΩ

Resolution: 0.1mΩ

Accuracy: ±(1% rdg. + 2.0mΩ)

Testing Time: 0.5~999.9s

Resolution: 0.1s

Accuracy: ±(1% + 0.1s)

Leakage Current Test:

Output Voltage: 30.0~300.0V

Resolution: 0.1V

Accuracy: ±(0.2% rdg. + 0.5V)

Output Current: 16.000A

Resolution: 0.001A

Accuracy: ±(0.2% + 0.01A)

Leakage Current: 0.0050~12.000mA

Resolution: 0.0001/0.001mA

Accuracy: ±(1% + 3μA)

Testing Time: 1.0~999.9s

Resolution: 0.1s

Accuracy: ±(1% + 0.1s)

Human Network: 6 kinds

Current Compensation: 0.0050~12.000mA

Resolution: 0.0001/0.001mA

Accuracy: ±(1% + 3μA)

Power Test:

Voltage: 30.0~300.0V

Resolution: 0.1V

Accuracy: ±(0.2% rdg. + 0.5V)

Current: 16.000A

Resolution: 0.001A

Accuracy: ±(0.2% + 0.01A)
