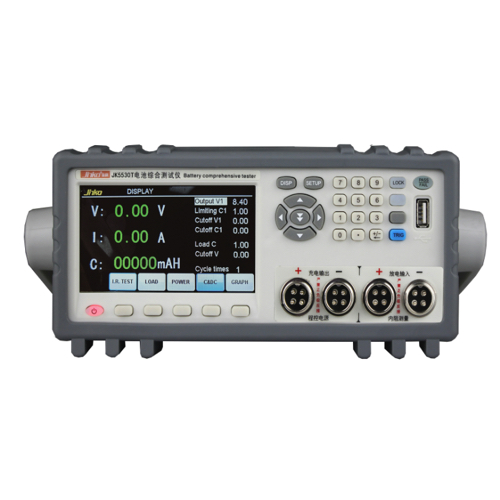

JINKO JK5530T Cell Phone Battery Small Battery Comprehensive Tester (0-60V 1mV, 0-1999mΩ, 0-99999mAH)

Measuring range:

Voltage measuring range: 0-60V 1mV Accuracy: ±5mV

Internal resistance measuring range: 0-1999mΩ Resolution: 1mΩ

Capacity measuring range: 0-99999mAH Minimum resolution: 1mAH

R1 R2 resistance: 1kΩ ~ 200kΩ

Measuring accuracy:

Voltage measuring accuracy:

±（Result0.1%+3mV） (Voltage: 0~36V)

±（Result0.1%+30mV）(Voltage: 37~60V)

Current measuring accuracy:

±（Result0.2%+30mA）(Current: 0~10A)

±（Result0.5%+30mA）(Current: 11~30A)

Internal resistance measuring accuracy:

±（Result*1%+1mΩ）

Capacity measuring accuracy: ±2%

Test speed:

Static test (all functions): 1.1-2 s

Internal CNC:

Maximum output voltage (constant voltage + constant current): 30V

Voltage source index: Output maximum current: 1A (0.1mA ~ 3.0000A)

Output maximum power: 30W

Ripple voltage: ﹤20mV

Load regulation: ﹤10%

Boost response time: 1S

Internal CNC:

Electronic load index: Maximum discharge voltage: 60V

Maximum discharge current: 3A continuous (0.1mA ~ 3.0000A)

Limit power: 100W (continuous)

Load model: Constant voltage Constant current

Communication Interface: Yes (with host computer software)

Accessory:

Kelvin test line: Test probe

Size and Weight:

Shelf size (mm): 215（W）*88（H）*375（D）

Dimensions (mm): 235（W）*105（H）*430（D）

Weight: About 3.6kg

JK5530T battery performance comprehensive tester can test multiple types of lithium-ion batteries, Ni-MH batteries, and polymer batteries (groups) within 60V30A such as walkie-talkie batteries, mobile phone batteries, etc., such as: MP3/4 batteries, digital batteries, double-string battery packs, Mobile phone batteries, etc.; this testing equipment is widely used in battery manufacturers of walkie-talkie batteries, mobile phone batteries, digital batteries, etc.; it can meet the production testing of high, medium and low-end batteries by various manufacturers. It takes less than 1 second to test a battery; it is fast, full-featured, and high-precision; it is the most accurate type of instrument currently on the market.

JK5530T can make a quantitative and accurate measurement of some basic parameters of the battery, and can measure the open circuit voltage, internal resistance, charging and discharging of the battery. Performance and battery capacity are especially for lithium batteries. There are also overcharge protection, overdischarge protection, overcurrent protection, short circuit protection and other functions, and the corresponding values have been measured, which greatly facilitates battery production and pre-sales and after-sales services. In a few simple steps, you can intuitively judge the performance and quality of the battery. It also has a quick screening function. You can set the upper and lower limits of the measurement parameters, and you can quickly detect defects from a batch of finished battery products. It improves production efficiency.
