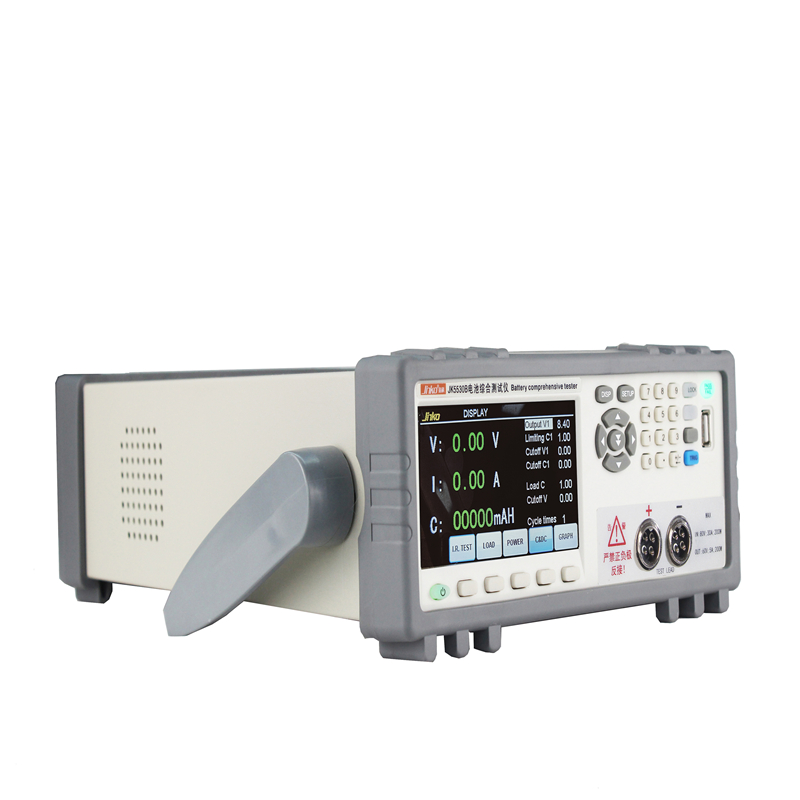

JINKO JK5530B Battery Comprehensive Tester (0-62V, 0-1999mΩ, 0-99999mAH)

Test range:

Voltage measurement range: 0-62V, Resolution: 1mV, Accuracy: ±5mV

Internal resistance measurement range: 0-1999mΩ, Resolution: 1mΩ

Capacity measurement range: 0-99999mAH, Minimum resolution: 1mAH

R1 R2 resistance: 1kΩ ~ 200kΩ

Accuracy:

Voltage measurement accuracy:

±(result * 0.1% + 3mV) (voltage 0-36V),

±(result * 0.1% + 30mV) (voltage 37-60V)

Current measurement accuracy:

±(result * 0.2% + 30mA) (current 0-10A),

±(result * 0.5% + 30mA) (current 1-30A)

Internal resistance measurement accuracy:

±(result * 1% + 1mΩ)

Capacity measurement accuracy: ±2%

Test speed:

Static test (All functions): 1.1-2s

Capacity test: Determine the capacity test time according to the battery capacity and discharge power

Internal CNC:

Maximum output voltage (Constant voltage + constant current): 60V

Voltage source index:

Output maximum current: 10A (common)

Output maximum power: 200W

Ripple voltage: <100mV

Load adjustment rate: <10%

Response time (time from 0 to the highest output voltage): 1S

Internal CNC electronic load index:

Maximum discharge voltage: 62V

Maximum discharge current: 30A (continuous)

Limit power: 200W (continuous)

Load mode: Constant voltage, constant current

Interface: Yes (with host computer software)

Accessories: Test fixture for resistance, Test fixture for voltage, Temperature probe, Power cable, Data line

Size & Weight:

Dimension (mm): 225 (W) x 110 (H) x 405 (D),

Weight: About 4.5kg

Manual

Product introduction
