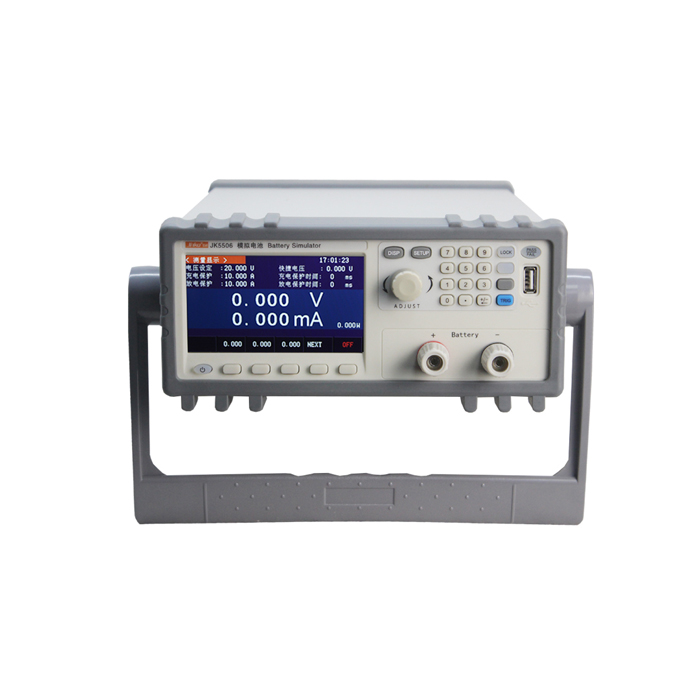

JINKO JK5506 Battery Simulator (200W, 0~20V, 0~10A)

Output:

Voltage: 0~20V

Current: 0~10A

Power: Max 200W

Input:

Voltage: 0~20V

Current: 0~10A

Power: Max 100W

Setting resolution:

Voltage: 1mV

Current: 10mA

Setting Accuracy:

Voltage:

0~5V: 0.05%+2mV

5.01~20V: 0.05% +10mV

Readback resolution:

Voltage:

U <5V: 1mV

U ≥5V: 5mV

Current:

I <10mA: 1uA

I ≥10mA: 1mA

Readback accuracy:

Voltage:

U <5V: 0.05% +2mV

U ≥5V: 0.05% +10mV

Current:

I <10mA: 0.15% +5uA

10mA ≤ I <5.0A: 0.15% +4mA

I ≥5A: 0.15% +6mA

Load adjustment rate: Voltage: < 0.1%

Power supply adjustment rate: Voltage: < 0.1%

Ripple: Voltage: 100mVp-p

Datasheet

Brief introduction

JK5506 Battery simulator has charging and discharging function. It can simulate 20V 10A battery with maximum charging 20V 10A and maximum discharging 20V 10A. It can also be used as a six-bit half-ammeter to test the static current of PCBA.The device is mainly used for the development and test of battery power supply products such as mobile power supply, Bluetooth headset, Bluetooth speaker, etc. or products with batteries. It can also be used as a general adjustable power supply.Its output voltage and input and output current protection values can be set. In PC communication mode, the dynamic voltage can be set continuously in a specified time, and the curve of voltage and current changing with time can be displayed intuitively.

Functional features

（1）It can detect the standby current of PCBA or finished products, and support the current to the level of μA.

（2） discharge 20V 10A，charge 20V 10A；

（3） Six sets of preset voltage are convenient for debugging.

（4） When the current is small, it can be automatically switched to the mA gear.

（5） High display resolution, 1mV voltage, 1μA current;

（6）It can store 6 sets of voltage to support fast switching;

（7） 3.5 inch LCD touch screen, support parameter input directly, easy to operate;

（8）Charge-discharge electrodeless conversion;

（9）Serial port communication interface (baud rate 115200);

（10）It can be controlled by PC and can set continuously changing dynamic voltage.

（11）It can intuitively display the curve relationship of voltage and current changing with time during the testing process.

（12）Special customized high current 10A double crocodile head wire.
