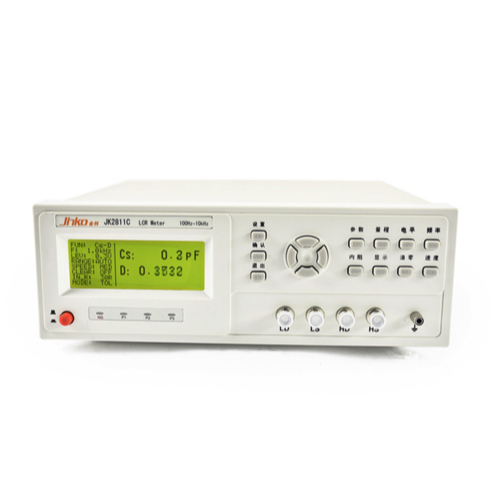

JINKO JK2811C LCR Digital Bridge Meter (100Hz, 120Hz, 1kHz, 10kHz)

Measuring Parameters: L-Q, C-D, R-Q, Z-Q

Basic Accuracy: 0.2%

Measuring Frequency: 100Hz, 120Hz, 1kHz, 10kHz

Display Range:

Z, R: 0.0001 Ω - 99.999MΩ

C: 0.01 pF - 99999mF

L: 0.01 μH - 99999H

Q: 0.0001 - 99999

D: 0.0001 - 99999

Output Impedance: 30Ω, 100Ω

Range: Automatic, Hold

Max Reading:

Primary parameter: 99999 (5 digits)

Secondary parameter: 99999

Monitor parameter: 99999

Signal Level: 0.1V, 0.3V, 1V

Measuring Speed: Slow: 2 times/second, Medium: 5 times/second, Fast: 10 times/second

Trigger Mode: Internal, Manual, External

Clear Function: Open/Short Circuit, Clear Zeroing

Equivalent Circuit: Series and Parallel

Display: 192 x 64 dot-matrix LCD

Power Supply: AC 110V or 220V

Dimension & Weight: 350mm (W) x 110mm (H) x 320mm (D), 5.5kg

Datasheet

Manual

Brief Introduction:

JK2811C Bench LCR Meter Tester 10KHz Inductance Capacitance Resistance RZDQLC Tester with 0.2% Accuracy, AC110V-220V.

Features:

■ 192 x 64 dot matrix LCD display.

■ Higher measurement speed (80ms/time).

■ 30Ω/100Ω selectable signal source output impedance.

■ Measuring frequencies: 100Hz, 120Hz, 1kHz, 10kHz.

■ User-friendly interface and easy operation.
