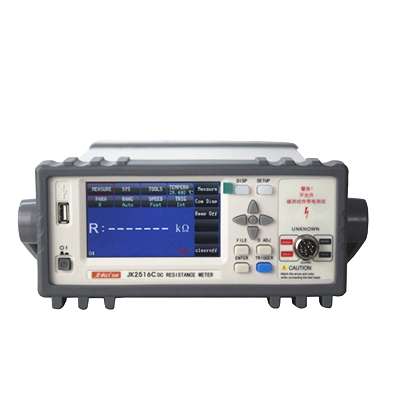

JINKO JK2516C DC Low Resistance Tester (0.1μΩ-100MΩ)

Measuring Range: 0.1μΩ-100MΩ

Basic Accuracy: 0.05%

Reading: 5 1/2 digits, Maximum 1150000 Number Display Digits

Measuring Speed: 4 - 35 times/second

Measuring Mode: Temperature Compensation, Standard, Criterion

Range Mode: Automatic, Hold, Manual Selection

Trigger Mode: Internal, Manual, External

Delay Time: 0 — 9999ms, Step by 1ms

Calibration Function: Short Circuit Reset, Reset, Load Correction

Temperature Measurement: -10.0℃ to -99.9℃, Sensor: PT100, Accuracy: 0.2℃

Temperature Compensation Function: Yes (Resistance Measured Value Converted to Resistance Value at Set Temperature)

Test Terminal Configuration: Four Terminals (2 Detection Terminals + 2 Drive Terminals) and External Shield Ground

Display Mode: Direct Reading, Δ%

Test Range: 10mΩ~1MΩ, 11 Ranges

Sorting: 3 Ranges, Absolute Value/Percentage

Display: 24 True Color, Resolution of 480×272 TFT LCD

Storage: U Disk, More Than 500 Groups

Interface: Standard RS232C HANDLER, USB HOST

Standard Accessories: JK26050S Test Cable, Power Cord, Warranty Card, Communication Software

Optional Accessories: 26009BSMD Test Clamp, 26008ASMD Test Box, Communication Software Customized

Size:

Upper Frame Size: 215mm × 87mm × 335mm

Shape Size: 235mm × 105mm × 360mm

Net Weight: 4kg

Manual

Brife Description

JK2516C is a high precision DC resistance tester.It can be used to detect coil, inductance, transformer, motor, relay contact resistance, connector resistance, fuse, cable resistance, printed circuit resistance, welding hole resistance, conductive film, metal flaw detection and so on.It is a low resistance tester with high speed, high precision and high performance. It can meet the quality assurance of production line, import inspection and laboratory measurement, and also can be applied to the test of automatic equipment.

Features

* The new 32 bit core processor, the data is better than foreign first-class equipment.

* 4.3 inch (LCD resolution 480*272) true color TFT display

*  U disk directly saves test results, and saves more conveniently.

*  The basic measurement accuracy of the maximum 0.05%

*  Built-in comparator, HI, LO, IN

*  The more than 100 sets of internal files are saved or invoked, and the U disk can extend more than 500 sets of test files to save or call.

*  Through USB HOST, we can upgrade and update the software version.

* U disk support format FAT16, FAT32 file system

* It is equipped with HANDLER, USB HOST, USB DEVICE, RS232C and GPIB interface.
