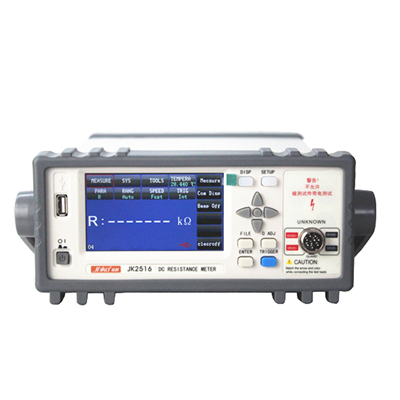

JINKO JK2516A DC Low Resistance Tester (1μΩ-2MΩ)

Measuring Range: 1μΩ-2MΩ

Basic Accuracy: 0.05%

Reading: 5 1/2 digits, Maximum 1150000 Number Display Digits

Measuring Speed: 4 - 35 times/second

Measuring Mode: Temperature Compensation, Standard

Range Mode: Automatic, Hold, Manual Selection

Trigger Mode: Internal, Manual, External

Delay Time: 0 — 9999ms, Step by 1ms

Calibration Function: Short Circuit Reset, Reset, Load Correction

Temperature Measurement: -10.0℃ to -99.9℃, Sensor: PT100, Accuracy: 0.2℃

Temperature Compensation Function: Yes (Resistance Measured Value Converted to Resistance Value at Set Temperature)

Test Terminal Configuration: Four Terminals (2 Detection Terminals + 2 Drive Terminals) and External Shield Ground

Display Mode: Direct Reading, Δ%

Test Range: 10mΩ~1MΩ, 8 ranges

Sorting: 3 Ranges, Absolute Value/Percentage

Display: 24 True Color, Resolution of 480×272 TFT LCD

Storage: U Disk, More Than 500 Groups

Interface: Standard RS232C HANDLER, USB HOST

Standard Accessories: JK26050S Test Cable, Power Cord, Warranty Card, Communication Software

Optional Accessories: 26009BSMD Test Clamp, 26008ASMD Test Box, Communication Software Customized

Size:

Upper Frame Size: 215mm × 87mm × 335mm

Shape Size: 235mm × 105mm × 360mm

Net Weight: 4kg

Manual

JK2516 series is a high-precision dc resistance tester series, which can be used to detect coils, inductors, transformers, motors, Relay contact resistance, connectors, resistors, fuse, cable resistance, PCB line resistance, resistance welding hole, conductive film, Metal detection, etc. It is a kind of low resistance tester with high speed, high precision, high performance that can meet the production quality assurance, Incoming goods inspection and laboratory measurement requirements, it can also be applied to automated test equipment.

Features

■ Brand new 32-bit processor core, data completely foreign first-class equipment

■ 4.3 inch  true color TFT screen

■ U disk directly save test results, save more convenient

■  The basic measurement accuracy up to 0.05%

■ built-in comparator, HI、LO、IN

■ With more than 100 group set file save or calls，U disk can be extended to more than 500 set of test file or call

■ Can be realized upgrade and update through USB HOST instrument software version

■ U disk can support format FAT16, FAT32 file system

■ The standard HANDLER, USB HOST, USB DEVICE, optional RS232C, GPIB interface
