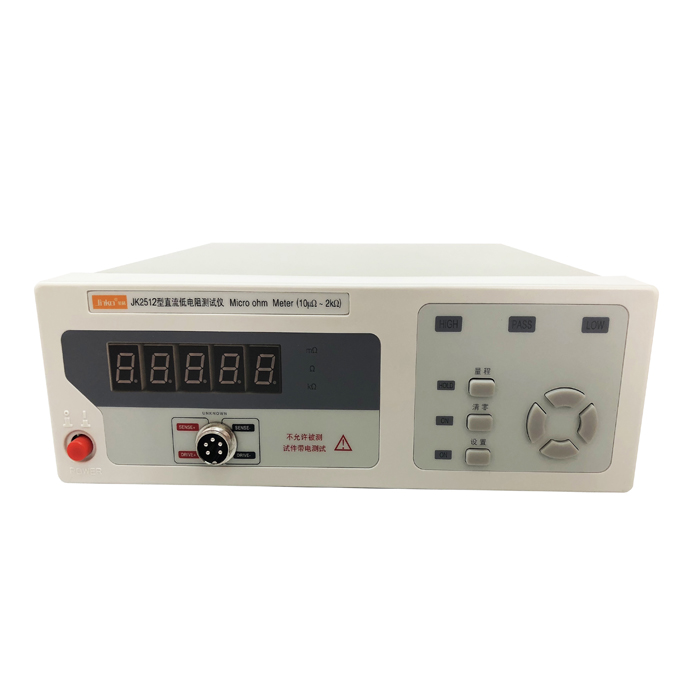

JINKO JK2512 DC Low Resistance Tester Micro Ohm Meter (200mΩ~200kΩ)

Basic Accuracy: 0.05% Reading + 2 Digits

Display Range: 0.01mΩ — 199.99KΩ

Test Current: 100mA, 10mA, 1mA, 100μA, 10μA

Range: 200mΩ, 2Ω, 20Ω, 200Ω, 2kΩ, 20kΩ, 200kΩ

Range Resolution: 10μΩ, 100μΩ, 1mΩ, 10mΩ, 100mΩ, 1Ω, 10Ω

Measurement Speed:

Fast: 10 meas/sec

Slow: 2.5 meas/sec

Range Mode: Auto, Hold

Trigger Mode: Internal, Manual, External

Function: Upper/Lower Limit, Pass or Failure Judgement, Range Locking, Reset, Power-Down Data Protection

Working Temperature and Humidity: 0℃ — 40℃, ≤90% RH

Power Requirements:

Power Supply: 198V — 242V AC, 47.5Hz — 52.5Hz

Power Consumption: ≤30 VA

Size and Weight:

Dimensions: 260mm (W) × 280mm (D) × 85mm (H)

Weight: Approximately 3.3 kg

Manual

Product introduction

JK2511,JK2512 DC low resistance tester is an intelligent, wide range, precise DC resistance testing instrument, which is suitable for copper resistance of transformer and inductance coil, contact resistance of relay, switch, contact resistance of connector, wire resistance, contact resistance of element solder, electric resistance of printed board and welding hole, metal flaw detection and so on. Used in the production line, you can use the HANDLER interface and GPIB interface (optional) good / bad product output signal, in order to improve the automation of production line testing ability.

Features

●Fast test speed

●Simple operation

●Direct reading

●High precision and cost-effective

●Small size

Application

The whole series of DC low resistance tester is stable and easy to use. It is suitable for copper resistance of transformer and inductance coil, contact resistance of relay, switch, contact resistance of connector, wire resistance, contact resistance of element welding spot, printed board line and welding hole resistance, metal flaw detection, etc.
