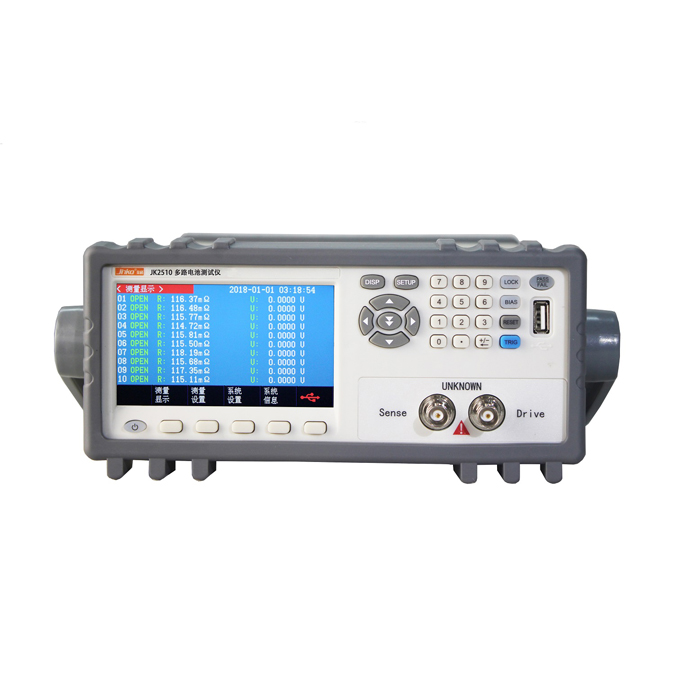

JINKO JK2510 Multichannel battery tester (0.01mΩ~33.000KΩ, 0.0001V~60.000VDC)

Test parameters: 10ch AC resistance, 10ch DC voltage

Basic accuracy: Resistance: 0.5%, Voltage: 0.05%

Measuring range:

Resistance: 0.01mΩ~33.000KΩ,

Voltage: 0.0001V~60.000VDC

Signal source: AC 1kHz, Test current <150mA

Range: 3 ranges, automatic and manual

Test speed: Fast: 10 ch/1s, Middle: 10 ch/2s, Slow: 10 ch/3s

Display result: Direct reading, ΔABS, Δ% sorting result

Max. reading: Resistance: 3,0000; Voltage: 60,000

Correction: Full range short circuit clear zero

Comparators: RHI/RNG/RLO output, VHI/VNG/VLO output absolute value, Tolerance ±TOL sorting, % tolerance %TOL sorting, Order comparison sorting

Trigger: Internal trigger, manual trigger, external trigger, and remote trigger

Interface: RS-232C, Handler (PLC)

Power requirement: Voltage: 195VAC～245VAC, Frequency: 50Hz, Power: Max. 15VA

Size and Weight:

Dimension (mm): 264 (W) x 107 (H) x 350 (D)

Weight: 4kgs

Accessories: Kelvin test line, RS232 cable

Optional accessories: Test probe, test meter bar

Others: Test line damage detection, true color 4.3 inch TFT-LCD display, keyboard lock, data retention function, and U disk data recording

JK2510 multi-channel battery tester is a newly designed multi-channel battery tester with high accuracy and high stability. It can quickly complete the separation of 10 groups of battery voltage and internal resistance; it is controlled by a high-performance ARM microprocessor. Real color 4.3 inch LCD display in Chinese and English, the operation is more convenient. Widely used in battery manufacturers to quickly sort contact resistance, battery voltage and battery internal resistance. The new and improved sampling circuit can measure any kind of battery. In addition, the instrument has a professional sorting function and sorting signal ring setting, which is applied to the automatic sorting system to complete the fully automatic assembly-line testing. It can also be equipped with a USB interface for remote control and data acquisition and analysis, which is very suitable for mass production of batteries.

True color 4.3-inch LCD can display 10 channels of voltage and internal resistance value at the same time, and each channel can be set independently comparator, JK2510 can test resistance: 0.001mΩ ~ 33.000kΩ Voltage: 0.0001V ~ 60.000VDC, new and improved sampling circuit Can measure any kind of battery.
