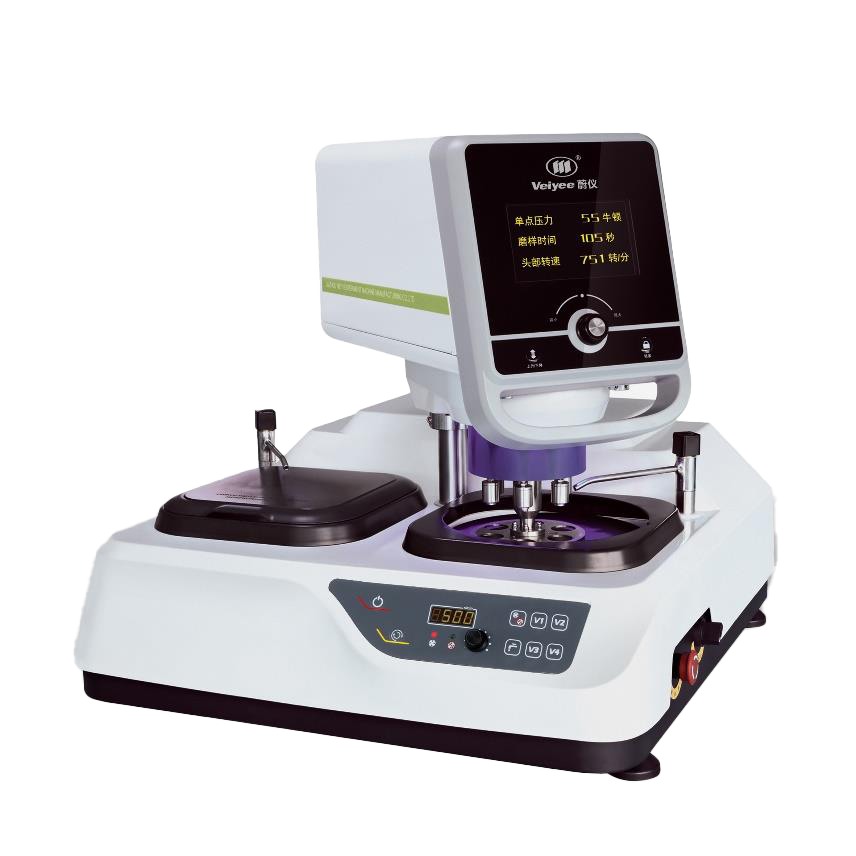

Jinan Mopao 3S Automatic Metallographic Grinding Polishing Machine (0～1000r/min, Φ250mm)

Machine power supply: Single phase AC220V 50Hz

Input power: 1.1KW

Grinding disc diameter: Φ250mm（standard），φ203mm，φ300mm (can be customized)

Grinding disc speed

0～1000r/min

50 r/min 、300 r/min、600 r/min、 1000 r/min （Fourth level fixed speed）

Grinding disc steering: Clockwise or counterclockwise adjustable

Grinding and polishing head speed: 50～150r/min（stepless speed）

Single point force loading: 5～60N

Sample preparation quantity: 6 pieces（standard）

Mode switching: Automatic and manual working modes can be switched with

one click

Sample size: Φ30mm (standard), φ22mm, φ25mm, φ40mm, φ45mm, φ50mm (can be

customized)

Sample preparation time: 0～995s

Compressed air pressure: 0.6～0.9Mpa

Dimension: 760×706×736mm

Net Weight: 126kg
