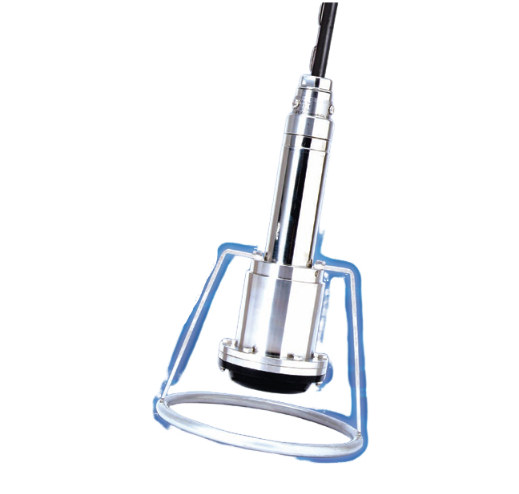

JFE SL-180C Submerged Level Detectors For Sewage Water (0 - 0.1 m ~ 0 - 40 m)

Measuring range: Range selectable from 0 - 0.1m to 0 - 40m

Accuracy: ±0.2% of span (±0.5% in the case of 0 - 0.8m)

Temperature characteristic: ±0.015%/°C of span (±0.05%/°C in the case of 0 - 0.8m)

Operating temperature range:

Detector: -10 to 50 °C (no freezing allowed)

Junction box: -5 to 60°C (Guaranteed Indicater operating range: 0 to 50°C)

Output signal:

4 to 20mADC (2-wire type)

Allowable load resistance: 390Ω (at power supply voltage 24V)

Allowable overload

3m when maximum measurement value is 0.8m or less

12m when maximum measurement value is more than 0.8m and up to 3m

45m when maximum measurement value is more than 3m and up to 40m

Lightning protection: 10 kV (lightning protection circuits built in power supply and output sections)

Material Detector: Type 316 stainless steel

Junction box: SMC resin

Hollow cable Outer diameter: 12 mm

Jacket: heat-resistant vinyl sheath

Lifting chain Wire diameter: 3 mm

Material: Type 316 stainless steel

Weight Detector: approx. 3.2 kg

Junction box: approx. 0.9 kg

Power source: DC16.2 to 30V
