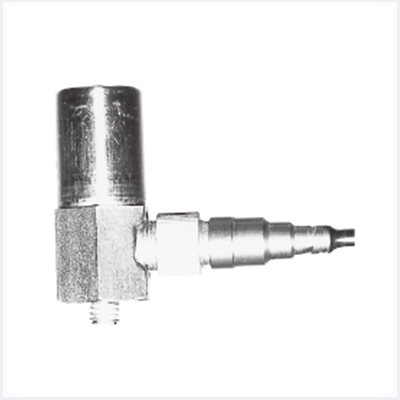

JFE PU-616E Piezoelectric-Type Pick-up (5 ~ 10,000Hz)

Sensitivity 5.1mV/(m/s2) (50mV/G) ±10%

Frequency range (±3dB ) 5 to 10,000Hz

Maximum measuring acceleration 490m/s2 (50G)

Shock survivability 9,800m/s2 (1,000G) Peak

Mounted resonance frequency 20kHz min.

Operating temperature range -10 to +80°C

Preserve temperature range -15 to +85°C

Weight 52g

Case material SUS303

Cable φ3 Coaxial cable (polyethylene-coated) with waterproof connector

Mounting JIS M6, Length 6mm

Amplifier Preamplifier built-in

Excitation voltage +12 to +25VDC

Constant current excitation +0.4 to +5.1mA

Output bias voltage +4.75 to +9.20VDC

Electrical isolation Case isolated

Protection against ingress of water IPX6
