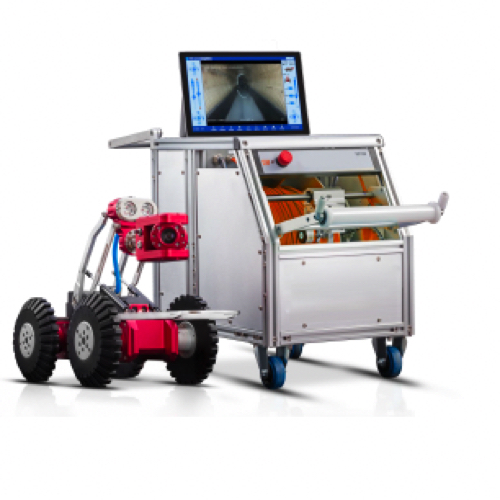

Jeweltest XF Pipeline CCTV Inspection Robot (360°; DN300–1000)

Main Control

Display: Microsoft Surface tablet, 8G + 128G, touch screen, with keyboard

Connection: Wifi or Internet cable

Control functions: movement, speed, direction, camera rotation, zoom, focus, lighting, electric lift

Status display: real-time date/time, distance, pipe diameter, pressure, speed

Text input: multi-language supported

Cable Reel

Protection: IP63

Cable length: 120m (customizable)

Cable type: 4-core, 2mm diameter each

Tensile strength: 300 kg

Material: polyurethane sheath, waterproof, wear and corrosion resistant

Function: automatic cable take-out and retrieve

Length measurement accuracy: 1 mm

Dimension: 570 × 395 × 475 mm

Crawler

Protection: IP68, 10m water depth

Working temperature: -10°C ~ 50°C

Pipe diameter: 300mm ~ 1000mm

Drive: double 90W motor, 6-wheel drive

Speed: up to 32 m/min

Climbing ability: up to 45°

Lift: electric lift up to 174mm

Lighting: front 8×10W LED, rear 2×10W LED

Rear camera: 1280 × 720

Weight: 16 kg

Camera

Protection: IP68, 10m water depth

Rotation: 360° continuous, ±135° tilt

Image sensor: 2MP CMOS (1920 × 1080)

Viewing angle: 6.7° ~ 68°

Sensitivity: 0.1 Lux

Zoom: 10x optical, 12x digital

Focus: auto / manual

Laser module: crack measurement

Dimension: 155 × 95 × 90 mm

Weight: 1.5 kg

Joystick

Connection: wired

Function: camera rotation, lift control, lighting, speed, direction

Industrial Battery

Charging time: 5 – 6 hours

Output: 220V/50Hz AC or 110V/60Hz AC

Power: 1000W (peak 2000W)

Capacity: 1077Wh (25.9V 41.6Ah)

Battery type: lithium

Working time: ~ 8 hours

Dimension: 345 × 172 × 246 mm

Weight: 9.5 kg

Lidar Scan Module (optional)

Suitable pipe: ≥ 350mm

Scanning frequency: 8 Hz

Accuracy: ±2 cm

Protection: IP68
