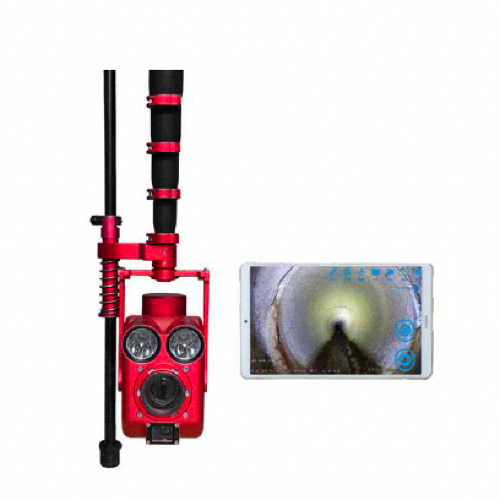

Jeweltest X1- P1 Pipe Periscope (DN100mm ~ DN2000mm)

Main controller

Storage capacity: 4GB Running memory + 128G solid state drive

Display: 8.4" touch screen, screen resolution 2560 * 1600

Main controller wifi connection with the system

Screenshot: rapidly catch and save defect images

Playback: browser and play back video files or pictures

Text Input: through the soft keyboard to input info, superimposed display, support for multi-languages

Work time: continuous working time ≥ 8 hours

Interface: Type C

Protection: controller protection class IP67, effectively dustproof

Weight: less than 320g

Camera Probe

Suitable for pipe diameter: DN100mm~DN2000mm

Lighting: can move along with camera probe, up 60 deg , down 30 deg .

Main lighting: 10W LED; 6 * 3W LED; 1-50meters

Image resolution: PAL.

Camera angle: horizontal 58.4 deg (wide-angle) 2.3 deg (long sight)

With laser measurement module, distance measuring precision: +/- 0.001 * mm, distance-measuring range: 0.2m~80m

Image sensor: Color 1/2.8 Progressive scanning CMOS

Zoom: 30x optical, manual or auto focusing

Luminous sensitivity (minimum illumination): 0.01LX

Adaptation: one click to defog, one click to center the len

Data display: real-time measurement, results displayed on the video screen

Waterproof: IP68, long-term immersion in water depth of 10 meters

Weight: about 2.45kg

Standard Control Pole

Made of carbon fiber material

Length of total stretch: 4.8m; up to 15m (w/extention poles)

Two standard extention poles: 0.8 meter; 1.5 meter

Support Pole

Carbon fiber material, 0.8m length
