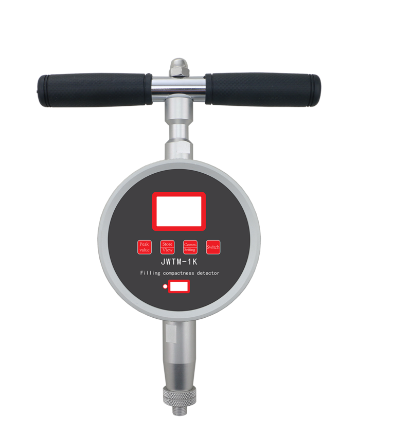

Jeweltest JWTM-1K Filling compactness detector (0~200N, 0~250px/ 600N/1000N, 0~750px)

Compaction specifications: 0~200N precision ≤0.5%

Depth of the test: 0~250px Suitable for cutting ring test

Compaction specifications: 600N/1000N

Depth of the test: 0~750px Suitable for field rolling layered inspection

Voltage: 12V

Weight: 3kg

Description

It is used to detect Dry density and uniformity of backfill. It can replace cutting-ring method, sand cone method. It is suitable for Checking the quality of filling in big construction site all-dimensional. It can reduce the workload geotechnical test, for A set of test up to 15-20 minutes. Since Its detection depth is 30 cm and can be extended to 1.5 m, weak points and hidden dangers At the bottom can be discovered in time. Equipped with special software that connected with computer, Automatic storage, data reading. Small volume, easy to carry on site.
