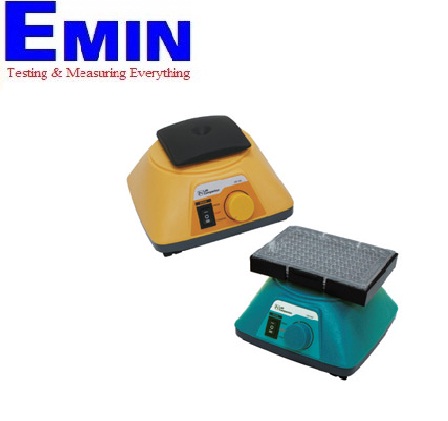

Jeiotech VM-96E Vortex Mixer
ManufacturerJEIOtech(View more products from this manufacturer)
ModelVM-96E
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Model: VM-96E
Manufacture: Jeiotech
Origin: Korea
warranty: 12 months
Motion Orbital
Speed Range (RPM) 200 - 3,000
Control Scale
Orbit (mm / inch, Ø) 4 / 0.16
Operating Mode Touch, Continuous
Motor Rating Input / Output (W) 12W / 6W
Motor BLDC motor
Max. Load (kg / lbs) - incl. attachment 0.5 / 1.1
Material Polypropylene
Dimension(mm / inch, W×D×H)* 148×159×77 / 5.8×7.4×3
Net Weight (kg / lbs) 2.6 / 5.7
Protection Class (DIN EN 60529) IP 42
- Well-balanced design and optimized safety features.
- Low-profile with small footprint ideal for use on lab benches and within fume hoods or clean benches.
- Real-time mixing for thanks to highly touch sensitive switch.
- Selective mixing modes with Variable speed control knob.
- VM-96E: Touch, Continuous. - Spark less BLDC motor adopted for safety, quick acceleration, and low maintenance.
- Built-in safety features against overload and over current.
- Chemically resistant PP (polypropylene) molded exterior.
- A wide range of accessories available. (rubber platform comes standard)
| Model | VM-96E | |||
|---|---|---|---|---|
| Technical Data |
Motion | Orbital | ||
| Speed Range (RPM) | 200 - 3,000 | |||
| Control | Scale | |||
| Orbit (mm / inch, Ø) | 4 / 0.16 | |||
| Operating Mode | Touch, Continuous | |||
| Motor Rating Input / Output (W) | 12W / 6W | |||
| Motor | BLDC motor | |||
| Max. Load (kg / lbs) - incl. attachment |
0.5 / 1.1 | |||
| General Data |
Material | Body | Polypropylene | |
| Platform | Silicone rubber | |||
| Dimension (mm / inch, W×D×H)* |
148×159×77 / 5.8×7.4×3 | |||
| Net Weight (kg / lbs) | 2.6 / 5.7 | |||
| Electrical Requirements | AC 100V ~ 240V, 50 / 60Hz | |||
| Safety Device | Current limit protection | |||
| Protection Class (DIN EN 60529) | IP 42 | |||
| Cat. No. | KR Plug | Parsian blue | AAH361115BK | |
| Orange | AAH361115RK | |||
| US Plug | Parsian blue | AAH361115BU | ||
| Orange | AAH361115RU | |||
※ Permissible environmental conditions: temperature (5-40℃) and relative humidity (up to 80%)
※ Protection class according to DIN EN 60529: Waterproof, Dust production index based on the test level.
* Exterior dimension without attachment.
※ Protection class according to DIN EN 60529: Waterproof, Dust production index based on the test level.
* Exterior dimension without attachment.
