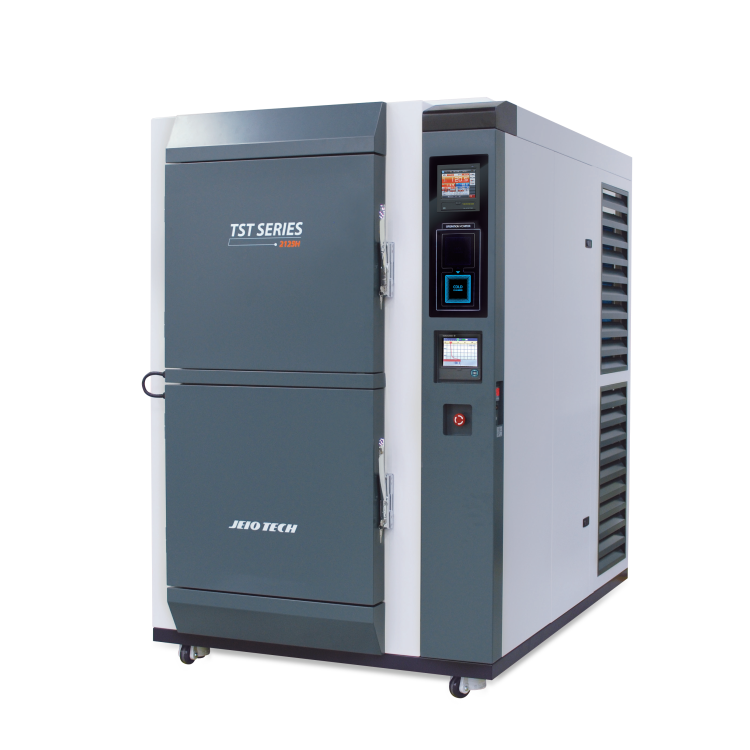

JEIOTECH TST-2065H Temperature Shock Test Chamber (64L)

Type: 2 Zone, Elevator

Test chamber

Temperature range (℃): -55 to 125

Temperature fluctuation (±℃): 0.2

Variation at 100℃ (±℃): 1.0

Temperature recovery time (min.): 5min.

Hot zone

Temperature range (℃): +20 ~ 150

Heat up time (min.): Ambient to 150 ℃: 30min.

Cold zone

Temperature range (℃): -70 to 0

Cool down time (min.): Ambient to -70℃ 50min.

Dimension

Exterior

W x D x H (mm): 1134 x 1800 x 1960

Weight: 450kg

Test chamber

Volume (L): 64L

W x D x H (mm): 400 x 400 x 400

Cable port (mm): Ø 50

Quantity of shelves (standard/max.) 2/3

Load per shelf (kg): 10

Electrical data 220V/60Hz/3P (A): 40
