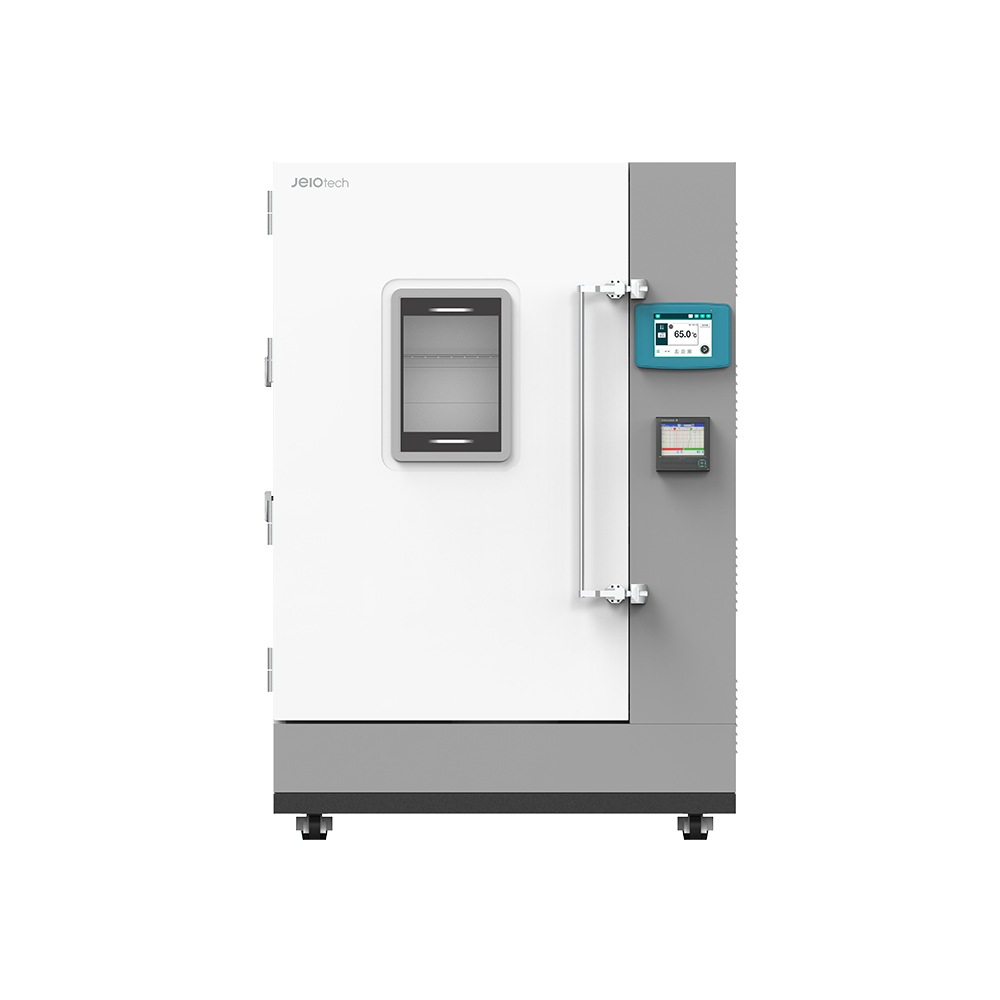

JEIOtech TH3-TG-1000 Temperature &Humidity Chamber (1000L, -5 ~ 100°C, 20~95%RH)

Interior Dimensions:

Chamber volume: 1000 L / 35.3 cu ft

Width: 800 mm / 31.5 inch

Depth: 950 mm / 37.4 inch

Height: 1350 mm / 53.1 inch

Quantity of shelves (standard/max.): 2 / 17

Distance between shelves: 60 mm / 2.4 inch

Max. load per shelf: 20 kg / 44.1 lbs

Permitted total load: 100 kg / 220.5 lbs

Cable port (Ø): 50 mm / 2.0 inch

Water tank capacity: 15 L / 0.5 cu ft

Weight:

Total weight: 410 kg / 903.9 lbs

Temperature Data:

Range without humidity: -5 to 100°C / 23.0 to 212.0°F

Fluctuation (±°C / °F): 0.5 / 0.9

Gradient (°C / °F): < 2.0 / < 3.6

Heat up rate (-5°C to 95°C): 0.5 °C/min / 0.9 °F/min

Cool down rate (95°C to -5°C): 0.5 °C/min / 0.9 °F/min

Humidity Data:

Range (%RH): 20 to 95

Fluctuation (±%RH): 1.5

Electrical Data: Electrical requirement (230V, 1P, 50/60Hz): 24.5 A

Datasheet
