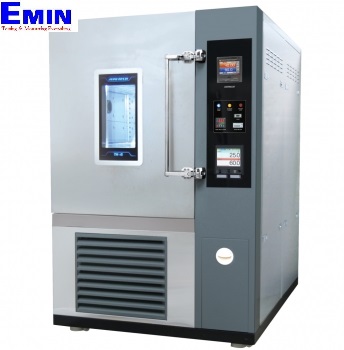

JEIOTECH TH3-G-1500 Temp Humid Chambers

Manufacturer: Jeiotech
Model: TH3-G-1500
Cat.No. AAH80078K
Origin: Korea
Warranty: 12 months

Chamber volume (L / cu ft):1540 / 54.4
Temperature Range (℃ / ℉):-40 to 150 / -40 to 302 without humidity, 15 to 90 / 59 to 194 with humidity
Best programmable control range : -30 to 140 / -22 to 284
Fluctuation 1) (±℃ / ℉)at 90 from -40℃ to 120℃(-40℉ to 248℉)
Variation 1) (±℃ / ℉) 90 from 20℃ to -40℃(68℉ to -40℉)
Time Heating without humidity (min.) :70 from -40℃ to 120℃ (-40℉ to 248℉)
Cooling without humidity (min.):85 from 20℃ to -40℃(68℉ to -40℉)
Humidity Range (%RH) 25 to 95 See the Feature for more detailed humidity range check.
Fluctuation 1) (±%RH)at 75%RH / 40℃:2.0
Variation 1) (±%RH) at 75%RH / 40℃:3
Refrigeration System:Mechanical dual stage refrigerator system(air-cooled condenser)
Refrigerant R-507
Water Supply Capacity 15L (0.53cu ft) - Cartridge type
Water quality pH6.2 to 7.2 / Electrical conductivity 20㎲ /cm to below
No. of wire shelves (standard / max.) 2 / 14
Distance of between shelves (mm / inch) 40 / 1.6
Max. load per shelf (kg / lbs) 40 / 88.2
Permitted total load (kg / lbs) 100 / 220.5
Dimension (W×D×H) Interior (mm / inch) 1000×1000×1450/ 39.4×39.4×57.1
Dimension (W×D×H) Exterior (mm / inch) 1503×2065×2007/ 59.2×81.3×79
Viewing windows (mm / inch) 270×330 / 10.6×13
Net weight (kg / lbs) 860 / 1895.9
Cable port Basically one hole provided / Ø50mm (2”) Optionally max. two holes available / Ø 50 or 80mm (2 or 3.2”)
Interface port Basically RS-232C [RS-485-optional]
Electrical requirements 380V, 50Hz, 3ph / 15.5A
