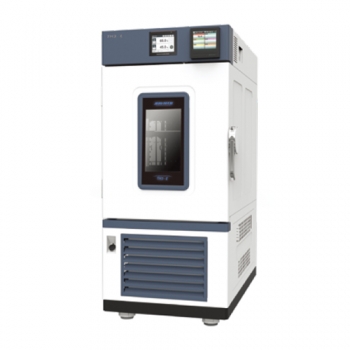

JEIOTECH TH3-E-200 Temperature & Humidity Chamber

Interior dimensions

Chamber volume (L / cu ft): 201 / 7.1

Width (mm / inch): 500 / 19.7

Depth (mm / inch): 670 / 26.4

Height (mm / inch): 600 / 23.6

Quantity of shelves (standard/max.): 2 / 9

Distance of between shelves (mm / inch): 40 / 1.6

Max. load per shelf (kg /lbs): 20 / 44.1

Permitted total load (kg / lbs): 50 / 110.2

Cable port (Ø, mm / inch): 50 / 2.0

Water tank capacity (L / cu ft): 20 / 0.7

Weight (kg / lbs): 200 / 440.9

Temperature data

Range without humidity (℃ / ℉): 0 to 90 / 32 to 194

Fluctuation (±℃ / ℉) 1): 0.5 / 0.9

Variation (±℃ / ℉) 1): 0.8 / 1.44

Heating time (0℃ to 90℃) (min): 80

Cooling time (90℃ to 0℃) (min): 90

Humidity data (※ Ref.: Temp./ Humid. control range graph)

Range (%RH): 35 to 85

Fluctuation (±℃ / ℉) 1): 1

Variation (±℃ / ℉) 1): 3

Electrical data & Ordering information

Electrical requirements (AC230V, 1ph, 50Hz): 15A

Cat. No.: AAH841102K

Accessories & Options:

Cable Port (ø50) AAA8T610

Cable Port (ø80) AAA8T611

Wire Shelf EDA8212

Perforated Shelf AAA80602-1

Signal Lamp AAA80550

Recorder (Paper) AAA8T500

Recorder (Digital) AAA8T505

Water Purifier AAA8T621

Direct Water System AAA80620

Inner Glass Door AAA81551
