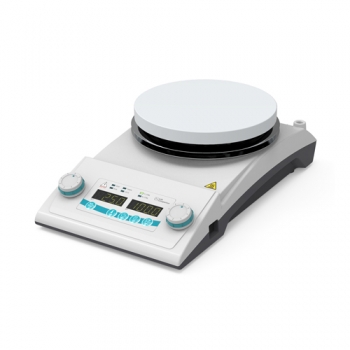

Jeiotech T-17SG Hotplate
ManufacturerJEIOtech(View more products from this manufacturer)
ModelT-17SG
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Temperature Range (℃ / ℉) Amb. to 350 / 662
Control Feedback Control with PID / Scale
Display LED digital (0.1℃ resolution)
Heating Power (W) : 800
Hot Top Indicator (℃ / ℉) Warning lamp (50 / 122)
Over Temp. Top plate Main body PCB
Over Current Current limit protection
Timer 2 type, 1min to 99 hrs 59 min
Load, Max (kg / Ibs) 25 / 55.1
Material Ceramic coated aluminum
Dimension (WxDxH, mm / Inch) 191x330x101
Electrical Requirements (230V,50Hz / 60Hz) 4 A
| Model | TS-14SG | TS-17SG | TS-18QG | |
|---|---|---|---|---|
| Heating | Temperature range (℃ / ℉) | Max. 350 / 662 | ||
| Control | Feedback control with PID | |||
| Display | LED digital (0.1℃ resolution) | |||
| Heating power (W) | 600 | 800 | 800 | |
| Stirring | Speed range (rpm) | 30 to 2,000 | ||
| Capacity (L / cu ft, H2O) | 20 / 0.71 | |||
| Magnetic bar, Max. (ØxL, mm / Inch) | 8 x 40 / 0.31 x 1.57 | |||
| Safety | Hot top indicator (℃ / ℉) | Warning lamp (50 / 122) | ||
| Over temp. | Top plate / Main body / PCB | |||
| Over current | Current limit protection | |||
| Motor | BLDC motor | |||
| Timer | 2 type, 1min. to 99 hr. 59 min. | |||
| Load, Max (kg / Ibs) | 25 / 55.1 | |||
| Top plate | Shape | Round type | Square type | |
| Material | Ceramic coated aluminum | |||
| Dimension (Ø or WxD) (mm / inch) | 140 / 5.51 | 170 / 6.69 | 180x180 / 7.08x7.08 | |
| Body | Shape | Straight body | ||
| Material | Aluminum | |||
| Dimension (WxDxH) (mm / inch) | 161x290x100 / 6.34x11.42x3.94 | 191x330x101 / 7.52x12.99x3.98 | 209x326x102 / 8.22x12.83x4.0 | |
| Net weight (kg / Ibs) | 2.8 / 6.17 | 3.5 / 7.72 | 3.8 / 8.37 | |
| Electrical requirements (230V, 50/60Hz) | 3.0 A | 4.0 A | ||
| Cat. No. | AAH34445K | AAH34475K | AAH34485K | |
| Electrical requirements (120V, 60Hz) | 5.0 A | 6.7A | ||
| Cat. No. | AAH34443U | AAH34473U | AAH34483U | |
