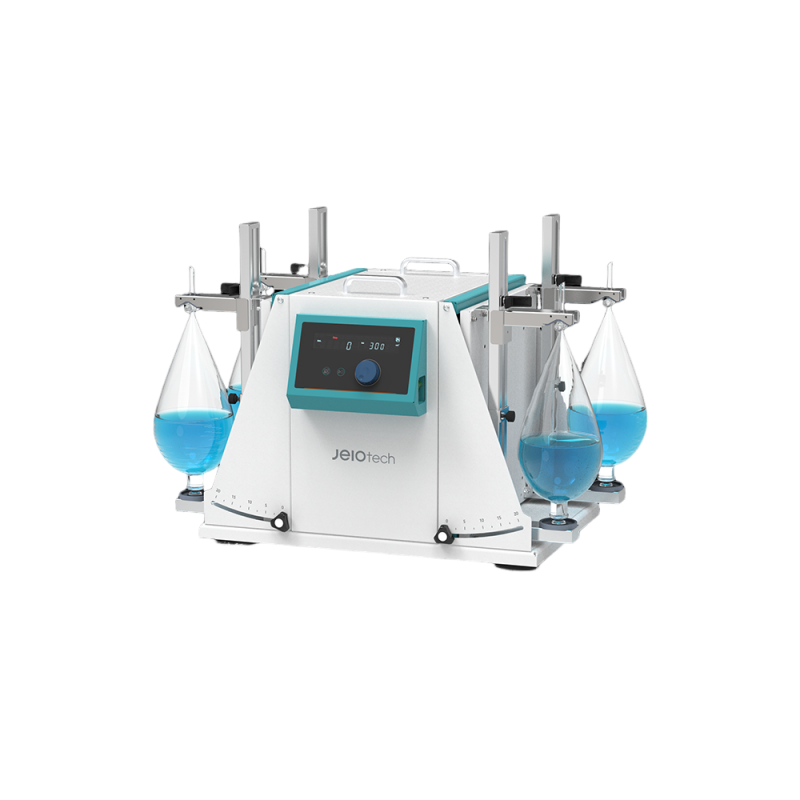

JEIOTECH RS-2 Funnel Shaker (Vertical 30~300rpm/ Inclined 30~250rpm)

Shaking system

- Motion type: Vertical & Inclined reciprocating (0~20°)

- Speed range (rpm): Vertical 30 to 300 / Inclined 30 to 250

- Speed accuracy at 100rpm: ±1rpm

- Amplitude, recip. stroke length (mm/inch): 40/1.6

- Timer: 999hr 59 min

Dimension

- Exterior (WxDxH, mm/inch): 600x460x470/ 23.6x18.1x18.5

- Minimum required space considering 20° tilt: 900x460x670 / 35.4x18.1x26.3

- Max. load per each side (kg/lbs): 5/11

- Net weight (kg/lbs): 52/114.6

Electrical data: 230V, 50/60Hz, 0.4A

Maximum number of installed funnels (per side)

Funnel capacity: Round type / Cylindrical type

- Less than 500ml: 3-5ea / 3-5ea

- 500ml: 3ea / 3ea

- 1L: 3ea / 3ea

- 2L: 2ea / 2ea

Optional accessories

AAA32502: Funnel holder

AAHQ1011K: LC GreenBox
