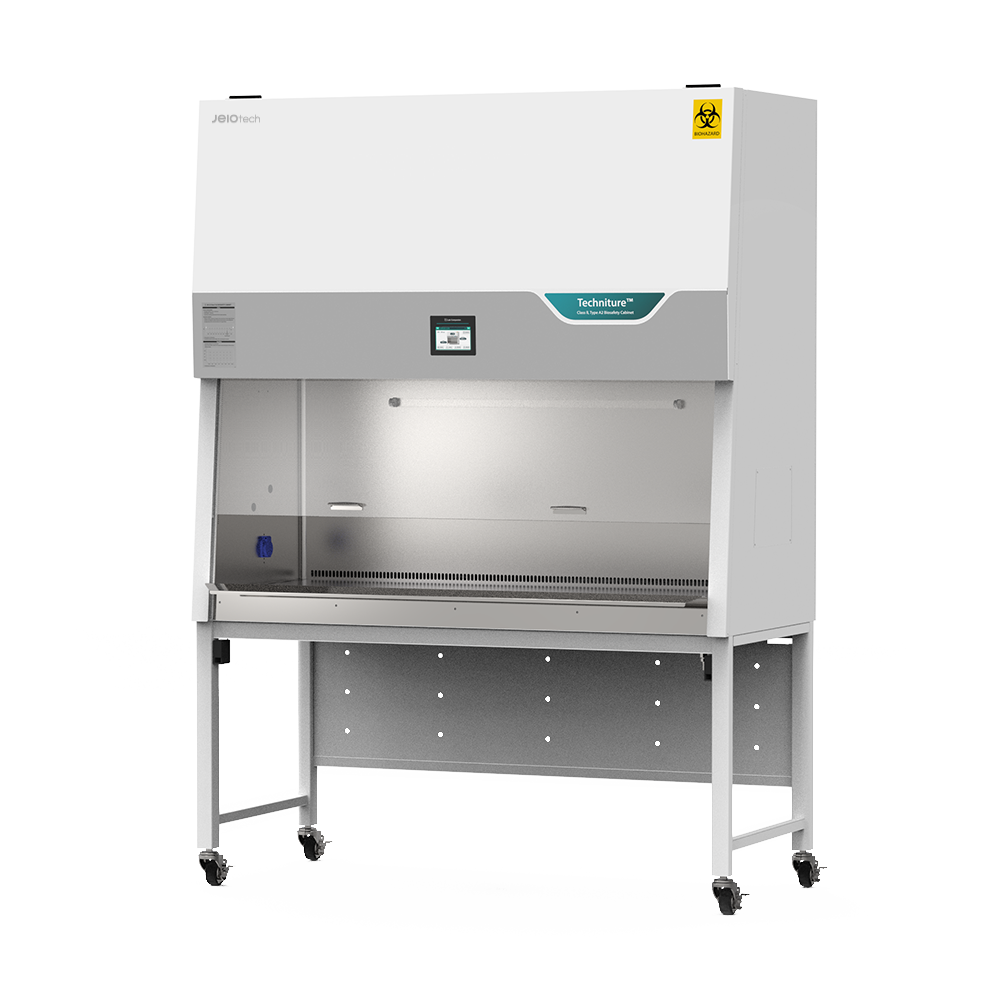

JEIOTECH JB-15A Biosafety Cabinet (562 m3/h)

Type: Class II A2

Air

Airflow type: Vertical Laminar Flow

Filter: ULPA filter, typical efficiency of 99.999% at 0.1~0.3 μm

Downflow velocity (m/s): 0.31±0.025

Inflow velocity (m/s): 0.53±0.025

Exhaust volume (m3/h): 562

Material

Main body: Epoxy powder coated steel

Working surface: Stainless steel #304

Sash: UV absorbing tempered glass (5.0T)

Dimension

External (W x D x H, mm / inch): 1653 x 824 x 2257 / 65.1 x 32.4 x 88.9

Working area (W x D x H, mm / inch): 1530 x 572 x 658 / 60.2 x 22.5 x 25.9

Sash max opening (mm / inch): 515 / 20.3

Working opening (mm / inch): 210 / 8.3

Noise level (dB): < 58 db

Fluorescent lamp intensity (Lux): More than 800

Net weight with stand (kg / lbs): 347 / 765

Power Consumption (230V, 50/60Hz) (W): 374

Datasheet
