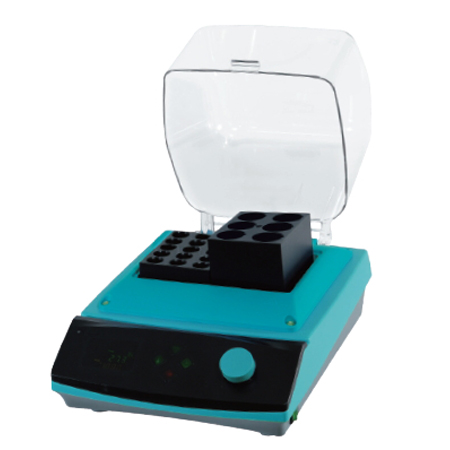

Jeiotech CCB-350S Heating Block

Name: Jeiotech CCB-350S Heating Block
Brand: JEIOtech

ManufacturerJEIOtech(View more products from this manufacturer)

ModelCCB-350S

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Control System Feedback control PID
Temperature Range (℃ / ℉) Amb . 5 to 130 /
Fluctuation at 37℃ (±℃ / ℉) 0.06 / 0.11
Variation at 37℃ (±℃ / ℉) 0.15 / 0.27
Dimension (W×D×H) Internal (mm / inch) 154×99×37 / 6.1×3.9×1.5
Overall (mm / inch) 276×334×120 / 10.9×13.1×4.7
Net Weight (kg / lbs) 5.1 / 11.2
Electrical Requirements (230V, 50 / 60Hz) 3.5A
Cat. No. AAHJ1015K

Blocks

Operating Features

Precision accuracy of ±0.1℃ is ensured by its PID controller from ambient + 5℃ to 130℃.
Its built-in temperature limit setting feature (with max. 0.2℃ overshooting)
allows you to perform highly temperaturesensitive reactions such as isothermal amplifications.
Automatic power cutoff.
- If the temperature of the main body exceeds 150℃.
- If the internal circuit is overheated.
Two types of timer modes:
- Timer 1: Timer activation starts only after reaching the set temperature.
- Timer 2: Timer activation starts right after the timer setting.

Constructional Features

Its polypropylene main body is highly chemical-resistant and easy-to-clean.
Optimal heat transfer is achieved by the tight coupling design of the main body and the corrosion- resistant anodized aluminum blocks.
Bright high-quality VFD display, responsive touch buttons, and a big dial knob offer maximum ease-of-use.
Transparent lid allows easy sample monitoring and even temperature distribution.
Blocks can be easily interchanged by using the included block lifter.
Interchangeable tube blocks (sold separately) accept various tube or vial sizes.
Select proper models and heating blocks depending on your sample tube or vial sizes. (refer to accessories)

Model		CHB-350S	CHB-350T
Control System		Feedback control PID
Display		VFD(0.1℃ resolution)
Temperature	Range (℃ / ℉)	Ambient +5 to 130
	Fluctuation at 80℃ (±℃ / ℉)	0.1 / 0.18
	Variation at 80℃ (±℃ / ℉)	0.2 / 0.36
Dimension (W×D×H)	Internal (mm / inch)	154×99×37 / 6.1×3.9×1.5
	Overall (mm / inch)	276×334×120 / 10.9×13.1×4.7	276×334×250 / 10.9×13.1×9.8
	Net Weight (kg / lbs)	5.1 / 11.2	5.5 / 12.1
Electrical Requirements (230V, 50 / 60Hz)		3.5A
Cat. No.		AAHJ1015K	AAHJ1115K
Electrical Requirements (120V, 60Hz)		6.7A
Cat. No.		AAHJ1013U	AAHJ1113U

※ Permissible environmental conditions: temperature (2-60℃) and relative humidity (up to 80%)
