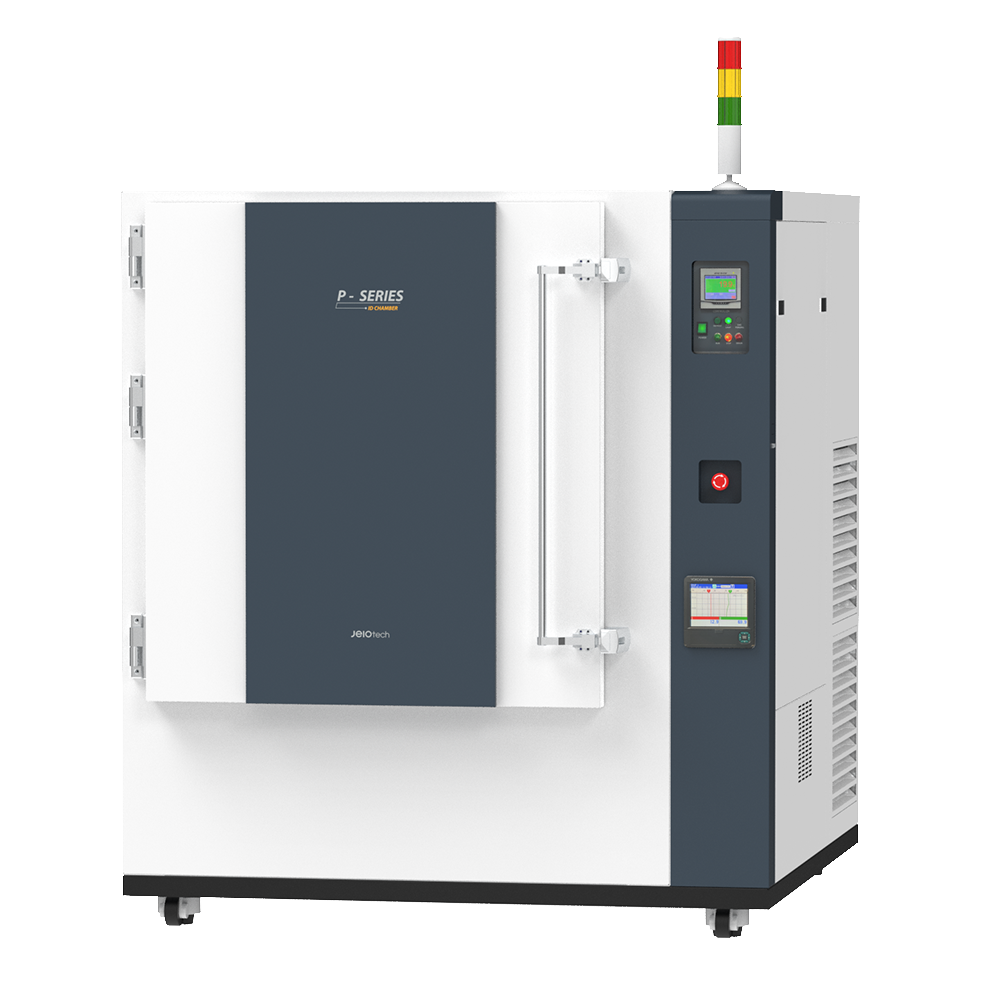

JEIOTECH PMV-100 Temperature Controller (-5℃~100℃, 1000L)

Chamber volume (L / cu ft)1000 / 35.3

ControllerProgrammable, Touch screen type controller (3.5” color monitor)

Temperature range (℃ / ℉)-5 to 100 / -23 to 212

Temperature fluctuation1) 2) at 25℃ (±℃ / ℉)0.3 / 0.54

Temperature variation2) (±℃ / ℉)

at -5℃0.3 / 0.54

at 0℃0.3 / 0.54

at 25℃0.3 / 0.54

at 40℃0.3 / 0.54

at 60℃0.4 / 0.72

at 80℃0.5 / 0.90

at 100℃ 0.7 / 1.26

Heating time2) (min.) from 25℃ to 100℃56

Cooling time2) (min.) from 25℃ to -5℃39

Recovery time2)

after doorwas opened (min.)

at -5℃5.0

at 0℃6.0

at 25℃ 6.0

at 40℃2.5

at 60℃6.0

at 80℃6.0

at 100℃8.0

Program control

Temperature range (℃ / ℉)5.5 to 89.5 / 9.9 to 161.5

Heating rate (℃ / ℉ per min.) from -12.5℃ to 87.5℃1.3 / 2.34

Cooling rate (℃ / ℉ per min.)

from 87.5℃ to -12.5℃0.9 / 1.62

No. of wire shelves (standard / max.)2 / 33

Distance of between shelves (mm / inch)30 / 1.2

Max. load per shelf (kg / lbs)45 / 99.2

Permitted total load (kg / lbs)150 / 330.7

Dimension (W×D×H)

Interior (mm / inch)1000×910×1100/ 39.4×35.8×43.3

Exterior (mm / inch)1720×1650×1534/ 67.7×64.9×60.4

Net weight (kg / lbs)440 / 970
