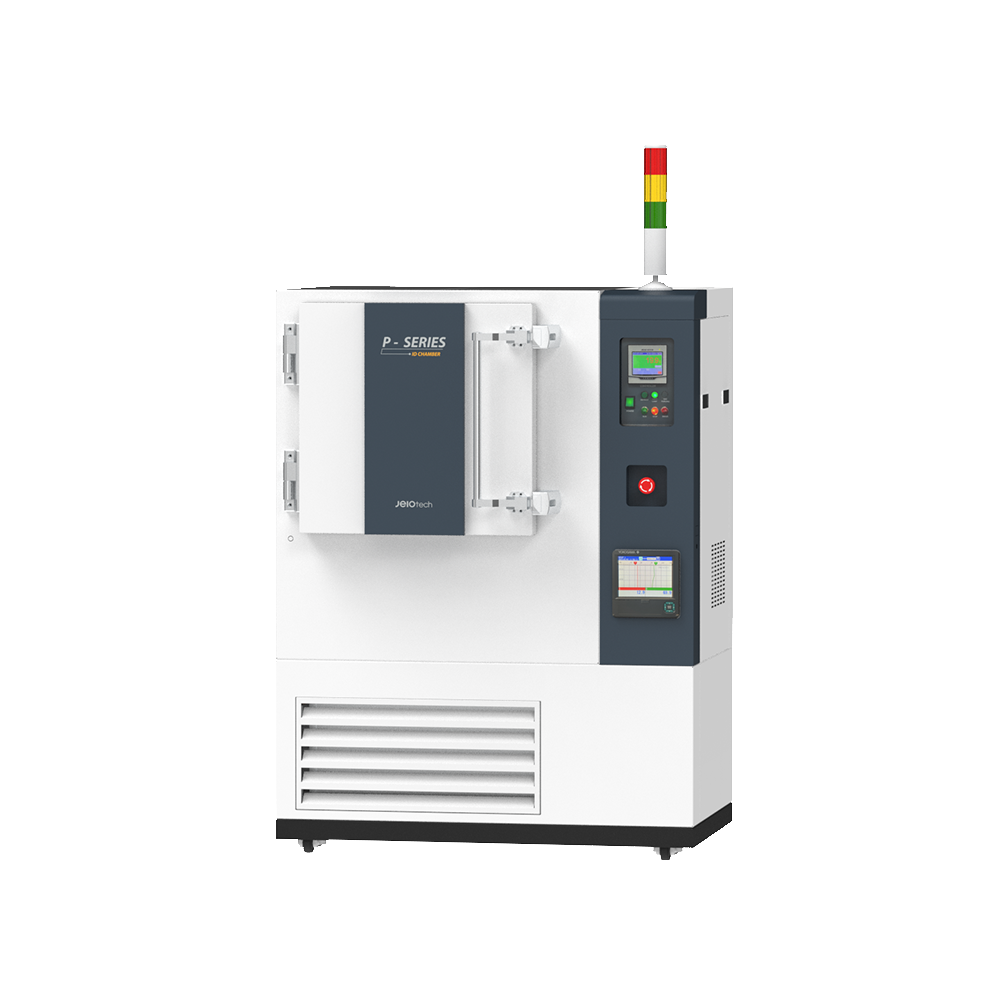

JEIOTECH PMV-012 Heating & Cooling Chamber (125L; -5~100°C)

Temperature range (°C/°F): -5~100/23~212

Fluctuation (±°C/°F) at:

• -5°C: 0.3/0.54

• 0°C: 0.3/0.54

• 25°C: 0.3/0.54

• 40°C: 0.3/0.54

• 60°C: 0.3/0.54

• 80°C: 0.3/0.54

• 100°C: 0.3/0.54

Gradient (±°C/°F) at:

• -5°C: 0.4/0.72

• 0°C: 0.4/0.72

• 25°C: 0.2/0.36

• 40°C: 0.3/0.54

• 60°C: 0.5/0.9

• 80°C: 0.7/1.26

• 100°C: 1/1.8

Heating time (min)

• -5°C~25°C: 24

• 0°C~25°C: 20

• 25°C~40°C: 16

• 25°C~60°C: 30

• 25°C~80°C: 32


• 25°C~100°C: 45

• -5°C ~100°C: 60

Cooling time (min)

• 25°C~-5°C: 36

• 25°C~0°C: 30

• 40°C~25°C: 17

• 60°C~25°C: 37

• 80°C~25°C: 52

• 100°C~25°C: 65

• 100°C~-5°C: 97

Recovery time after door was opened for 30sec. (min.) at

• -5°C: 8

• 0°C: 6

• 25°C: 0.5

• 40°C: 2.5

• 60°C: 4

• 80°C: 5

• 100°C: 7

Chamber volume (L/cu ft): 125/4.41

Quantity of shelves (standard/max): 2/6

Distance of between shelves (mm/inch): 30/1.2

Load per shelf (kg/Ibs): 15/33.1

Permited total load (kg/Ibs): 50/110.2

Electrical requirement: 380V/50Hz/3P; 9.7A

Interior dimensions (WxDxH) (mm/inch): 500x500x500/19.7x19.7x19.7

Exterior dimensions (WxDxH) (mm/inch): 1060x672x1340/41.7x702x52.8

Weight (kg/Ibs): 360/793.7
