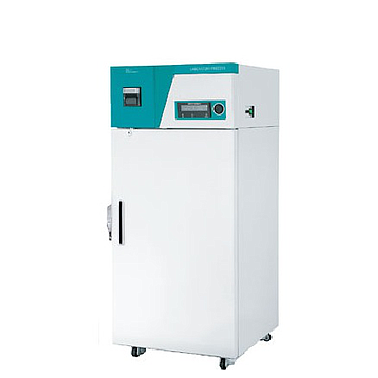

JEIOTECH FHG-300 Laboratory Freezers (319L, -15 ~ 0℃)

Chamber volume [L / cu ft] 319 lit
Display VFD and touch-screen
Temperature range [℃/ ℉] -15 ~ 0℃
Refrigerator [Hp] 3/4
Meterial Stainless steel #304, Steel, 1.0 mm, powder coating
Dimensions [W×D×H] : Interior [mm / inch]::550x580x1000 mm
Exterior [mm / inch]:750x799x1610 mm
Electrical Requirements [230V, 50Hz] 3.8 A
Cat. No. Solid door type AAHE2111K
Glass door type AAHE2112K

Datasheet

Safety Features

• Automatic shutdown of fan for minimization of heat loss when the door is opened.
• Over current protection, high and low temperature alerts, key pad button lock function.
• Open door alert, built in door lock.

Operational Features

• Intuitive and easy-to-operate control panel with VFD and touch-sensitive buttons.
  - Easy temperature unit conversion between °C and °F
• Dual Defrost system
  - Innovative auto-defrost system automatically activated when detecting trace amount of frost build-up
     in the evaporator
  - Additional manual defrost system for immediate frost removal
• Three types of recorders to choose from (optional)
  - Dot recorder (6 point)
  - Chart recorder (6”, 24hr/7days)
  - Thermal line recorder

Constructional Features

• High-quality 304 grade stainless steel chamber.
• Fully insulated chamber ensuring minimal chamber’s temperature fluctuation.
• Air-tight door seal with vice lock door closing mechanism for safe storage of samples.
• Fully insulated chamber ensuring minimal chamber temperature fluctuation.
• Easy to store samples with included wire shelves.
• High thermal efficiency evaporation system made of low corrosion material
• Built-in 50mm diameter cable port for external probes or wires. (except for FHG/FMG/FCG-150)
• Dedicated stand with casters and stacking kit for FHG/FMG/FCG- 150 Models for use in labs with limited space(optional)
• Various accessories
