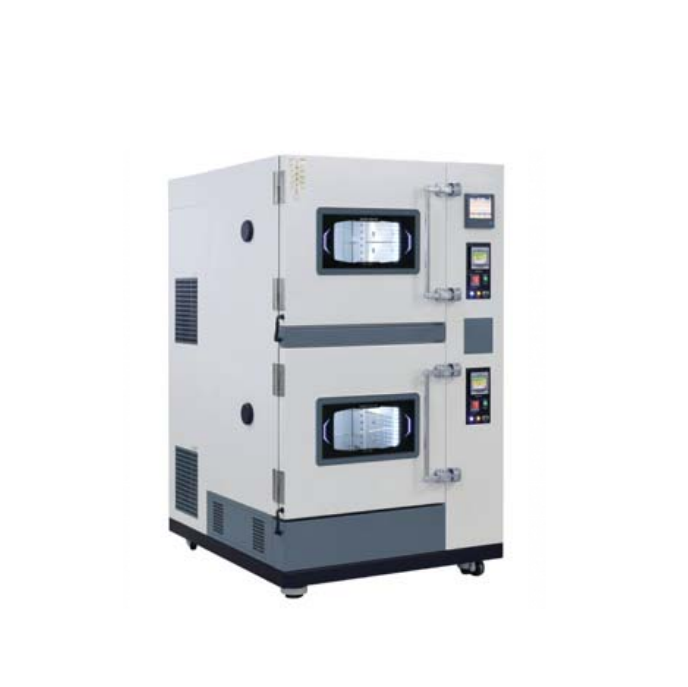

JEIOTECH TH-DG-400 Temperature & Humidity Chamber (384Lx2; dual; KR plug)

Temperature:

Range (°C): -5~100

Fluctuation at 40°C, 75%RH (±°C/°F): 0.3/0.54

Variation at 40°C, 75%RH (±°C/°F): 0.5/0.9

Heating time (-5°C~100°C) (min): 85

Cooling time (100°C~-5°C) (min): 100

Humidity:

Range (%RH): 15~90

Fluctuation at 40°C, 75%RH (±%RH): 0.8

Variation at 40°C, 75%RH (±%RH): 3

Interior dimensions:

Chamber volume (L/cu ft): 384x2/13.6x2

WxDxH (mm/inch): 800x800x600/31.5x31.5x23.6 (each chamber)

Quantity of shelves (standard/max): 2/8 (each chamber)

Distance of between shelves (mm/inch): 60/2.4

Max. load per shelf (kg/Ibs): 25/55.1

Permitted total load (kg/Ibs): 75/165.3 (each chamber)

Cable port (Ø, mm/inch): 50/2.0 (each chamber)

Water tank capacity (L/cu ft): 24/0.8

Weight (kg): 560

Electrical requirements (230V, 1ph, 50Hz): 17.5Ax2ea

Accessories: Cable Port, Shelves, Signal Lamp, Recorder, Water Purifier, Direct Water System, Inner Glass Door
