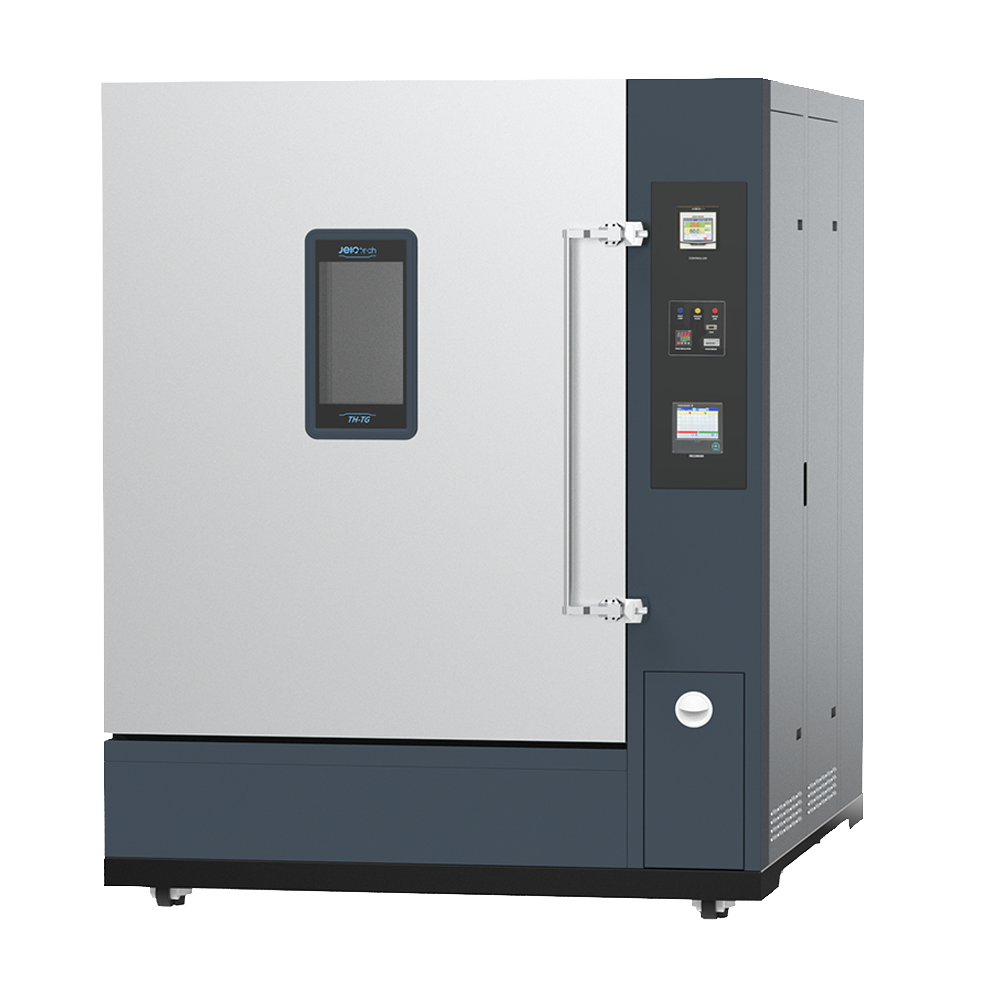

JEIOTECH TH-TG-1500 Temp. & Humid. Chambers (1540L, -5~100℃, 20~95%RH)

Chamber volume (L): 1540

Controller: PID control (LCD Type)

Temperature range: -40 to 150℃ without humidity, 20 to 90 with humidity

Time

+ Heating: 55 min (-5℃ → 100℃)

+ Cooling: 145 min (100℃ → -5℃)

Humidity range (%RH): 10 to 95

Refrigerant

+ System: Air - cooled

+ Refrigerant: R- 507A

+ Capacity (W): 750

Water tank

+ Capacity: 15L

+ Water quality: pH6.2 to 7.2 / Electrical conductivity 20㎲ /cm to below

Permitted total load (kg): 100

Dimension (W×D×H)

+ Interior (mm): 1100×1000×1400

+ Exterior (mm: 1554×1876×1935

Net weight (kg): 480±10

Interface port: Basically RS-232C [RS-485-optional]
