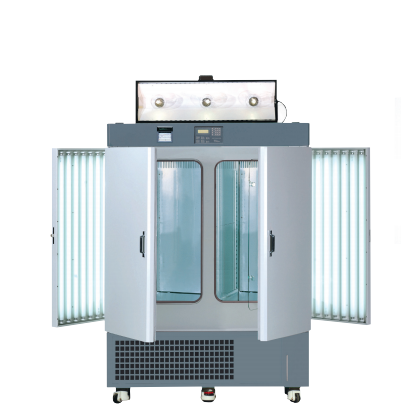

JEIOTECH GC-1000TLH Plant Growth Chambers (1000L, 5~50℃, 50~90%, CO2)

Chamber Volume (L / cu ft) 1000 lit
Controller PID control (LCD Type)
Temperature: 5~50
Fluctuation 1) (±℃ / oF) at 40℃ / 60%RH 0.1
Variation 1) (±℃ / oF) at 40℃ / 60%RH 0.8
Humidity: 50~90 %
:Fluctuation (±%RH) at 60%RH / 40℃ 3
Refrigeration: System Air - cooled, R-404A, Capacity (W) 1300
Material: Ni-Cr Wire Heater / SUS Tube Heater , Polyurethane
Interface Port Basically RS-232C, [RS-485 : optional]
Dimension (W×D×H): Internal (mm / inch) 1200×800×1080 mm
: External (mm / inch) 1410×1070×2150 mm
Net Weight (kg / lbs) 550 kg
AC230V, 1ph, 50Hz , 30 A Cat.No. AAHA1032K

Datasheet

Operating Features

• +5℃ to 50℃ (lamp off) / 10℃ to 50℃. (lamp on)
• Max. to 35,000Lux for GC-1000.
• Max. to 20,000Lux for GC-300 Models.
• 40 to 80% RH for GC-300TLH. (at 20~35℃)
  50 to 90% RH for GC-1000TLH. (at 20~35℃)
• 300 to 5,000ppm CO2 control. (optional)
• Microprocessor PID control / Auto-tuning / Calibration.
• Digital timer: 1 min to 99 hr 59 min.
• 10 step programmable temperature, humidity, and illumination profiles and repeat the steps up to 999 cycles.(self-testing)

Constructional Features

• High quality #304 grade stainless steel interior and dirt repellent powder coated exterior surface.
• User-friendly door system.
  - Silicone packing for keep inner chamber perfectly.
  - External door with magnetic sealing for dual airtight.
  - Smoothly open to minimize damage of samples.
• Wide inner tempered glass door provides a full view of the samples.
  - A tempered window provides a clear view of your specimen during testing.
• Powerful air circulator for smooth airflow.
  - Air flow system very efficient for plant growth.
  - One propeller for GC-1000TLH / tangent blower and a sirocco fan for GC-300 Models.
• High frequency electronic ballast lamps.
  - Reinforced Blue and Red spectrums lighting system for plant photosynthesis.
  - Economical with stable light and long life span.
  - Easy-to change bulbs.
• Heat rise restraint.
  - Unique construction to minimize the heat from rising due to the luminous light source.
  - Designed to exhaust the heated air through the upper holes.
  (only for GC-1000TLH)
• Easy cleaning of condenser air-filter.
  - To prevent deterioration of refrigeration system and keep filter dust free by periodically cleaning the filter.
• Casters for easy mobility when installing or moving environ-mental testing chamber.
• Electronic humidity sensor is fast acting and easy to calibrate.
• Dual type water level sensor.
• Adjustable water tank positions. (only for GC-300TLH)
• Removable shelving and rounded inner chamber corners for easy cleaning.

Safety Features

• Leakage breaker for power supply.
• Over current protection.
• Over heat protection with alarm.
• Door opening alarm.
• Low and empty water level alarm. (TLH Models only)
