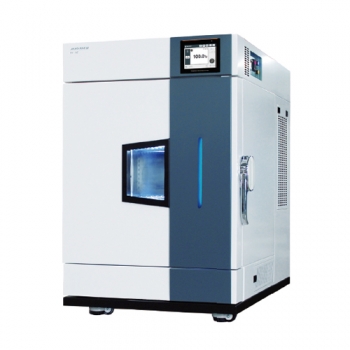

JEIOTECH TC3-ME-100 Cooling and heating chamber (-20~150℃, 100L)

Range (℃ / ℉):-20 to 150 / -4 to 302

Fluctuation (±℃ / ℉) 1):0.3 / 0.54

Variation (±℃ / ℉) 2):0.5 / 0.9

Heating time 3):50

Cooling time 4):55

Chamber volume (L / cu ft):100 / 3.53

Width (mm / inch):500 / 19.7

Depth (mm / inch):380 / 15

Height (mm / inch):530 / 20.9

Quantity of shelves (standard/max.):2/10

Distance of between shelves (mm / inch):20 / 0.8

Max. load per shelf (kg /lbs):25 / 55.1

Permitted total load (kg / lbs):65 / 143.3

Cable port (Ø, mm / inch):50 / 2

Weight (kg / lbs):130 / 286.6

Electrical requirements: AC230V, 1ph, 50Hz
