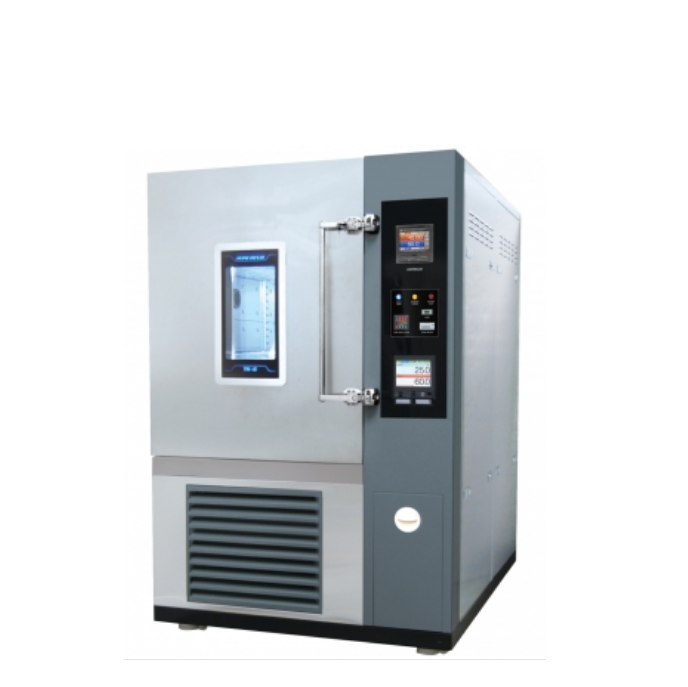

JEIOTECH TH-I-300 Constant Temperature & Humidity Chamber (302L; -40~150°C; 15~95%RH)

Temperature:

Range (°C/°F): -40~150/-40~302

Fluctuation at 40°C, 75%RH (±°C): 0.3

Variation at 40°C, 75%RH (±°C): 0.5

Heating time (-40°C~120°C) (min): 60

Cooling time (20°C~40°C) (min): 60

Humidity:

Range (%RH): 15~95

Fluctuation at 40°C, 75%RH (±%RH): 0.4

Variation at 40°C, 75%RH (±%RH): 3

Interior dimensions:

Chamber volume (L/cu ft): 302/10.7

WxDxH (mm/inch): 600x630x800/23.6x24.8x31.5

Quantity of shelves (standard/max): 2/10

Distance of between shelves (mm/inch): 40/1.6

Max. load per shelf (kg/Ibs): 25/55.1

Permitted total load (kg/Ibs): 65/143.3

Cable port (Ø, mm/inch): 50/2.0

Water tank capacity (L/cu ft): 15/0.5

Weight (kg/Ibs): 385/848.8

Electrical requirements (230V, 3ph, 50Hz): 9.2A

Accessories: Cable Port, Shelves, Signal Lamp, Recorder, Water Purifier, Direct Water System, Inner Glass Door
