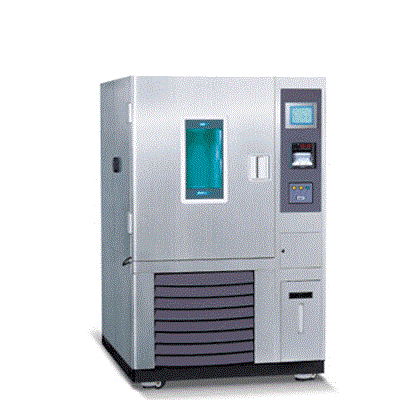

JEIOTECH TH-I-180 Temp. & Humid. Chambers (189L, 230V, 50Hz, 1ph)

Chamber volume (L): 189

Controller: Programmable, Touch screen type controller

Temperature range: -40 to 150℃ without humidity, 15 to 90 with humidity

Time

+ Heating - without humidity (min.): 70 from -40℃ to 120℃

+ Cooling - without humidity (min.): 75 from 20℃ to -40℃

Humidity range (%RH): 20 to 95

Refrigerant system: R-507 Mechanical single stage refrigerator system (air-cooled condenser)

Water Supply

+ Capacity: 15L

+ Water quality: pH6.2 to 7.2 / Electrical conductivity 20㎲ /cm to below

Dimension (W×D×H)

+ Interior (mm): 500×630×600

+ Exterior (mm: 1003×1139×1468

Net weight (kg): 320

Interface port: Basically RS-232C [RS-485-optional]

Datasheet
