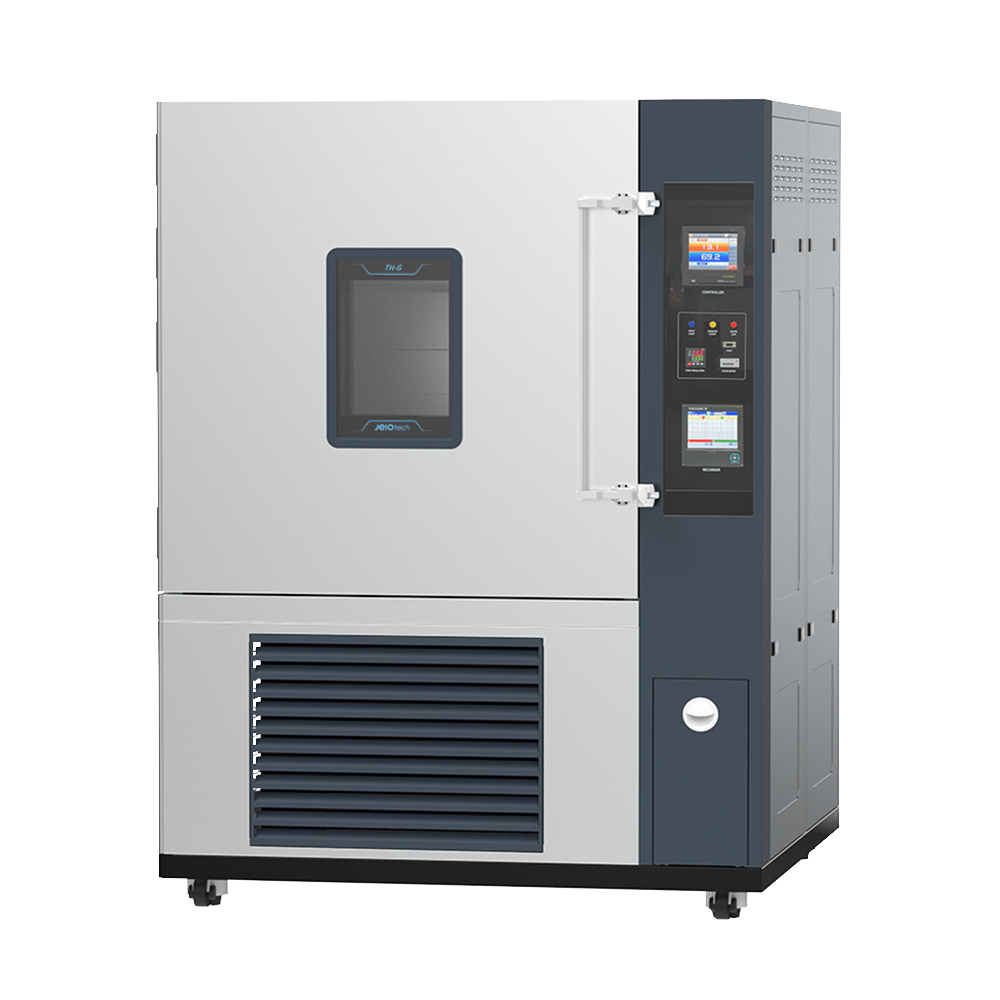

JEIOTECH TH-G-800 Temp Humid Chambers (-35~150℃, 25~95%RH, 380V, 50/60Hz, 3ph)

Chamber volume (L / cu ft):800 / 28.3
Controller Programmable, Touch screen type controller (5.7” color monitor)
Temperature Range (℃ / ℉):-40 to 150 / -40 to 302 without humidity, 15 to 90 / 59 to 194 with humidity
Best programmable control range : -30 to 140 / -22 to 284
Fluctuation 1) (±℃ / ℉)at 40℃ / 75%RH:0.3 / 0.54
Variation 1) (±℃ / ℉) at 40℃ / 75%RH:0.5 / 0.9
Time Heating without humidity (min.) :70 from -40℃ to 120℃ (-40℉ to 248℉)
Cooling without humidity (min.):85 from 20℃ to -40℃(68℉ to -40℉)
Humidity Range (%RH) 25 to 95 See the Feature for more detailed humidity range check.
Fluctuation 1) (±%RH)at 75%RH / 40℃:1.0
Variation 1) (±%RH) at 75%RH / 40℃:3
Refrigeration System:Mechanical dual stage refrigerator system(air-cooled condenser)
Refrigerant R-507
Water Supply Capacity 15L (0.53cu ft) - Cartridge type
Water quality pH6.2 to 7.2 / Electrical conductivity 20㎲ /cm to below
No. of wire shelves (standard / max.) 2 / 14
Distance of between shelves (mm / inch) 40 / 1.6
Max. load per shelf (kg / lbs) 40 / 88.2
Permitted total load (kg / lbs) 100 / 220.5
Dimension (W×D×H) Interior (mm / inch) 1000×800×1000/ 39.4×31.5×39.4
Dimension (W×D×H) Exterior (mm / inch) 1503×1319×1968/ 59.2×51.9×77.5
Viewing windows (mm / inch) 270×330 / 10.6×13
Net weight (kg / lbs) 620 / 1366.9
Cable port Basically one hole provided / Ø50mm (2”) Optionally max. two holes available / Ø 50 or 80mm (2 or 3.2”)
Interface port Basically RS-232C [RS-485-optional]
Electrical requirements 380V, 50Hz, 3ph / 12.2A
