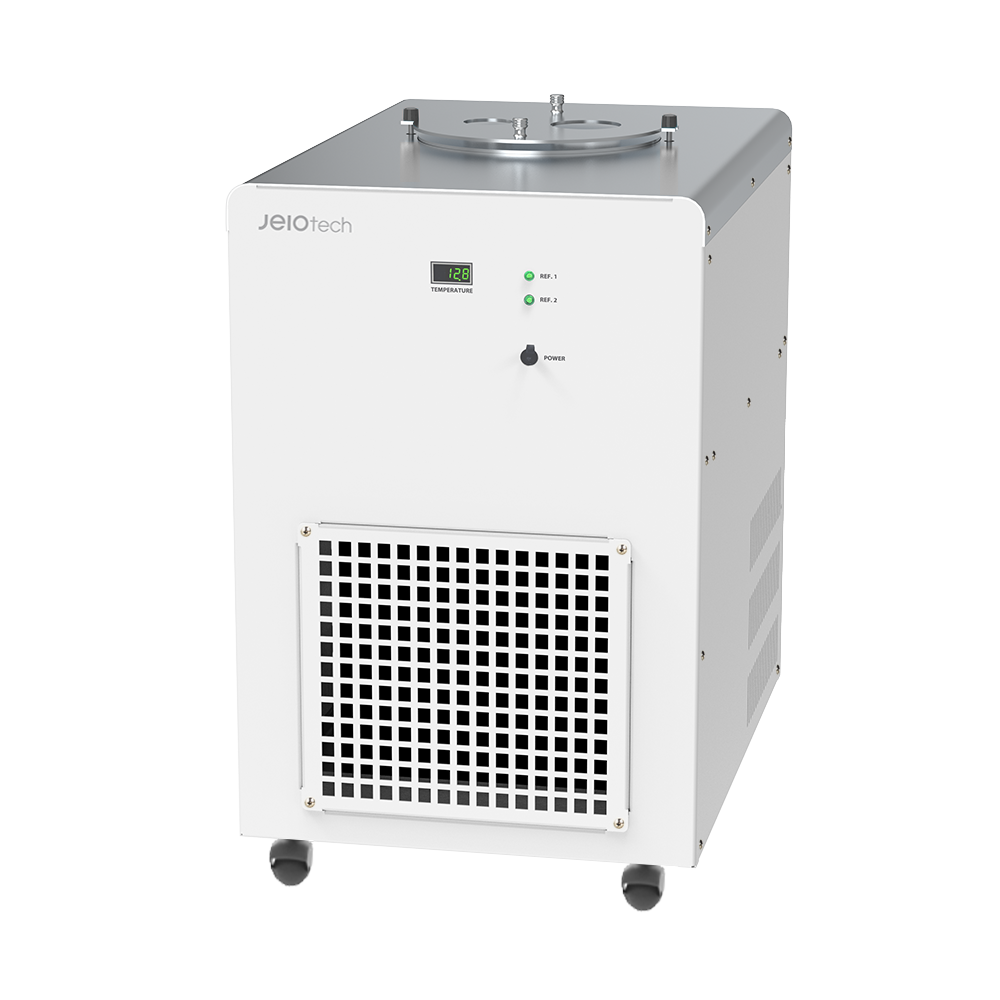

JEIOTECH CTB-10 Cold Trap Bath (4.8L, -40℃)

- Temperature range (℃ / ℉): Down to -40 / -40
- Material
+ Bath external: Stainless steel, 1.2t, Double painted & baked
+ Bath up desk: Stainless steel, 1.5t
+ Insulation: Polyurethane foam (30mm)
+ Refrigerator: 1/2 HP, R-404A (LBP)
- Dimension
+ Volume (L / cu ft): 4.8 / 0.17
+ Bath (Ø×H, mm / inch): 210×204 / 8.3×8
+ Glass trap (Ø×H, mm / inch): 600×262 / 2.4×103
+ Exterior (W×D×H) (mm / inch): 360×465×555 / 14.1×18.3×21.9
+ Net weight (kg / lbs): 46 / 101.4
- Electrical requirements (230V, 60Hz): 4.5 A
- Cat. No.AAH62011K
- Accessories: FCA1110 U-type glass trap (1ea)
