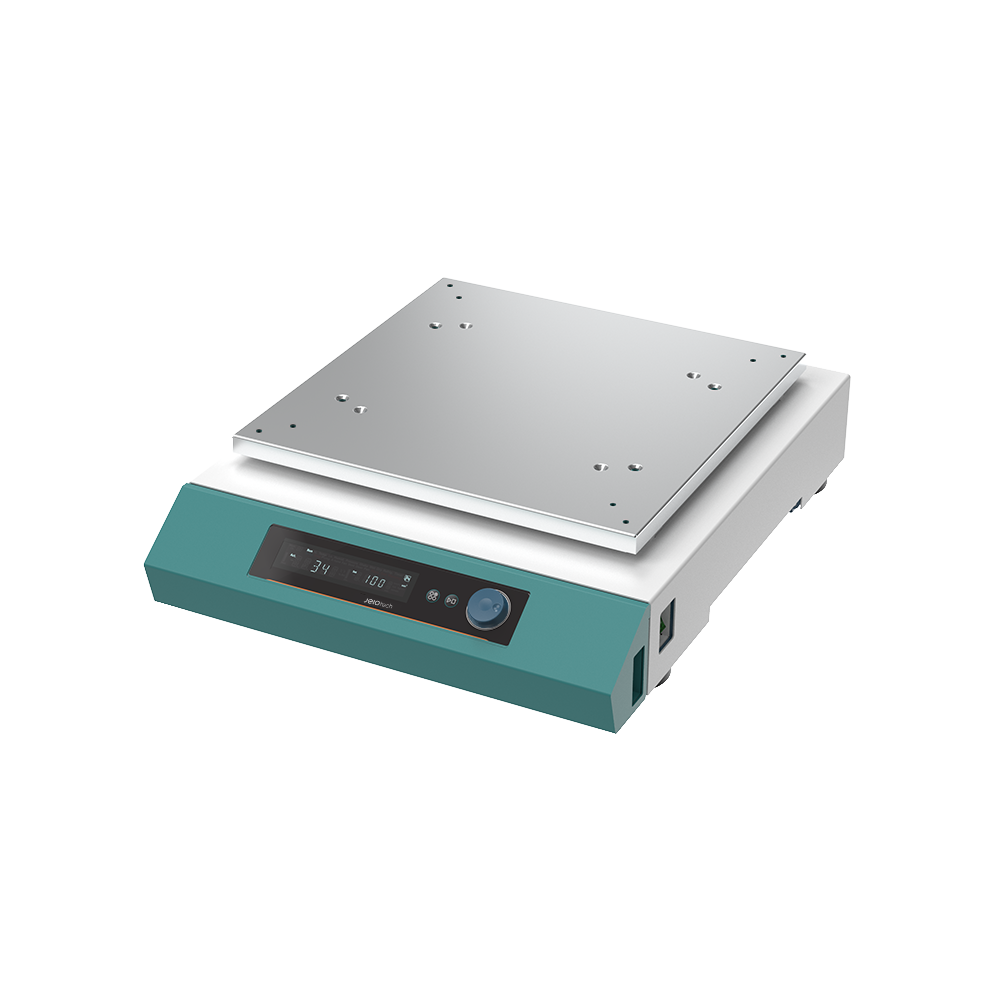

JEIOTECH OS-4000 Open-air Shakers (General, 20~500rpm)

Control system: PID feedback control
Display: VFD
Shaking system
- Motion type: Orbital
- Amplitude size (mm / inch, dia.): 9.1 / 0.75 (standard)or 25.4 / 1 (adjustable)
- Speed range 2) (rpm): 20 to 500 or 20 to 450
- Accuracy: ±1% of set speed (≥100rpm) / ±1 (≤100rpm)
- Timer: 1 min. to 999 hr. 59 min.
Max. load (kg / Ibs)
14 / 30.9 at 500 rpm
21 / 46.3 at 400 rpm
or
10 / 22.0 at 450 rpm
21 / 46.3 at 300 rpm
Dimension
- Platform (W×D) (mm / inch): 450×450 / 17.7×17.7
- Body 1) (W×D×H) (mm/inch): 510x632x156 / 20.1x24.9x6.1
- Net weight (Kg / lbs): 43 / 94.8
Electrical requirements (230V, 50 / 60Hz): 0.3A
