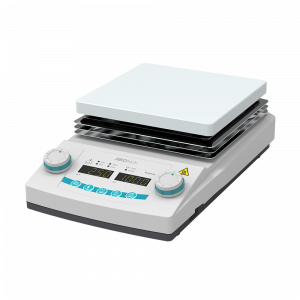

JEIOtech T-18QG Hotplates (350℃, 800W, square plate)

Heating

Temperature range (℃/℉): Max. 350/662

Control: Feedback control with PID

Display: LED digital (0.1℃ resolution)

Heating power (W): 800

Safety

Hot top indicator (℃/℉): Warning lamp (50/122)

Over temp.: Top plate / Main body / PCB

Over current: Current limit protection

Timer: 2 type, 1min. to 99 hr. 59 min.

Load, Max. (kg/Ibs): 25/55.1

Top plate

Shape: Square type

Material: Ceramic coated aluminum

Dimension (Ø or WxD) (mm/inch): 180x180/7.08x7.08

Body

Shape: Straight body

Material: Aluminum

Dimension (WxDxH) (mm/inch): 209x326x102/8.22x12.83x4.0

Net weight (kg/Ibs): 3.8/8.37

Electrical requirements (230V, 50/60Hz): 4.0 A
