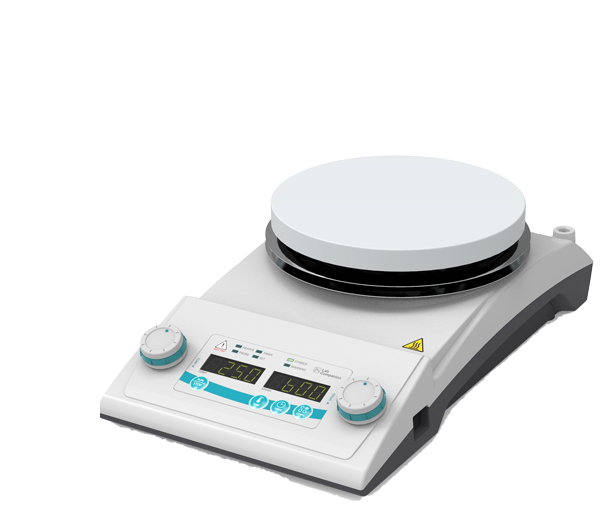

JEIOTECH T-14SG Hotplate (Digital; Φ140mm; KR plug)

Heating:

- Temperature range (℃ / ℉): Max. 350 / 662

- Control: Feedback control with PID

- Display: LED digital (0.1℃ resolution)

- Heating power (W): 600

Safety:

- Hot top indicator (℃ / ℉): Warning lamp (50 / 122)

- Over temp.: Top plate / Main body / PCB

- Over current: Current limit protection

Timer: 2 type, 1min. to 99 hr. 59 min.

Load, Max. (kg / Ibs): 25 / 55.1

Top plate:

- Shape: Round type

- Material: Ceramic coated aluminum

- Dimension (Ø or WxD) (mm / inch): 140 / 5.5

Body:

- Shape: Straight body

- Material: Aluminum

- Dimension (WxDxH) (mm / inch): 161x290x100/ 6.34x11.42x3.94

Net weight (kg / Ibs): 2.2 / 4.9

Electrical requirements (230V, 50/60Hz): 3.0 A

Optional accessories

MTT0132: Support rod, M10 (Ø12×400mm / Ø0.47x15.75˝)

AAA37512: Clamp holder, C-10 (Al body, Ø17mm / Ø0.66˝)

AAA37513: Clamp holder, C-7 (Al body, Ø12mm / Ø0.47˝)

AAA37514: Clamp holder, C-5 (PP body, Ø12mm / Ø0.47˝)

BEA1000014: 2 Prong clamp (60mm / 2.36˝ grip)

for Hotplates / Hotplate Stirrers
