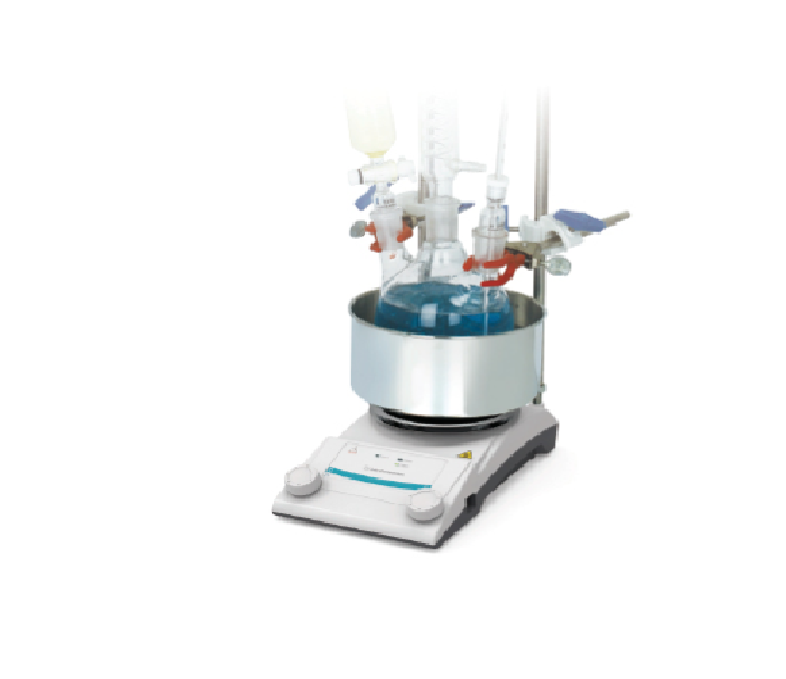

JEIOtech TM-14SG Hotplate Stirrers (50 ~ 2000 rpm, 600W, round plate)

Heating

Temperature range (℃/℉): Top plate, Max. 350/662

Control: Scale

Heating power (W): 600

Stirring

Speed range (rpm): 50 ~ 2,000

Capacity (L / cu ft, H2O): 20 / 0.71

Magnetic bar, Max. (ØxL, mm / Inch): 8 x 40 / 0.31 x 1.57

Safety

Hot top indicator (℃ / ℉): Warning lamp (50 / 122)

Over temp.: Top plate / Main body / PCB

Over current: Current limit protection

Motor: BLDC motor

Load, Max. (kg / Ibs): 25 / 55.12

Top plate

Shape: Round type

Material: Ceramic coated aluminum

Dimension (Ø or WxD) (mm / inch): 140 / 5.51

Body

Shape: Straight body

Material: Aluminum

Dimension (WxDxH) (mm / inch): 161x290x100/ 6.34x11.42x3.94

Net weight (kg / Ibs): 2.8 / 6.17

Electrical requirements (230V, 50/60Hz): 3.0 A
