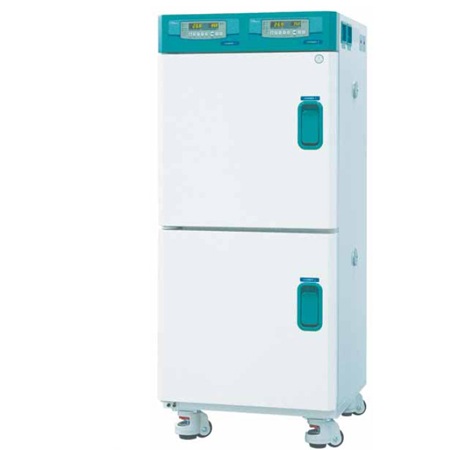

JEIOTECH IB-02G-2C Incubators (5~80℃, 60Lx 2 chambers)
Temperature Range (℃ / ℉) Amb. 5~80 /
Fluctuation at 37℃ (±℃ / ℉)0.2 / 0.36
Variation at 37℃ (±℃ / ℉) 0.15 / 0.27
Dimension (W×D×H) Internal (mm / inch) :400×360×420 /
Overall (mm / inch) 1170×640×1360 /
Net Weight (kg / lbs) 170
Electrical Requirements (230V, 50 / 60Hz) 4.1A
Manual
Operating Features
- Microprocessor PID control
- Simple calibration and auto-tuning function
- Delayed ON/OFF digital timer: from 1 min ~ 99 hr 59 min
- Intuitive control panel with bright LED display and touch-sensitive keypad
- High temperature limit setting and open door alert
- Convenient presetting function for 3 most commonly used temperature settings
- Four independently controlled 60L incubators merged into a single unit for space saving
- Rounded inner chamber corners for easy cleaning and optimal airflow
- Corrosion-resistant incoloy sheath heating element and stainless steel interior
- Built-in cable port to use other instruments inside the chamber
- Built-in casters for easy transport
- Wire shelves are provided as standard accessories (two per a chamber)
| Model | IB-02G-2C | |||
|---|---|---|---|---|
| Chamber Volume (L / cu ft) | 60 / 2.1×2 Chambers | |||
| Temperature | Range (℃ / ℉) | Amb. +5 to 80 / Amb. +9 to 176 | ||
| Fluctuation 1) at 37℃ (±℃ / ℉) | 0.2 / 0.36 | |||
| Variation 1) at 37℃ (±℃ / ℉) | 0.5 / 0.9 | |||
| Dimension (W×D×H) |
Interior (mm / inch) | 400×360×420 / 15.7×14.2×16.5 ×2 Chambers |
||
| Exterior (mm / inch) | 570×640×1360 / 22.4×25.2×53.5 | |||
| Net Weight (Kg / lbs) | 110 / 242.5 | |||
| Electrical Requirements (230V, 50 / 60Hz) | 4.1A | |||
| Cat. No. | AAH2A115K | |||
| Electrical Requirements (120V, 50 / 60Hz) | 7.5A | |||
| Cat. No. | AAH2A116U | |||
1) Technical data according to DIN 12880.
| Model | IB-02G-4C | |||
|---|---|---|---|---|
| Chamber Volume (L / cu ft) | 60 / 2.1×4 Chambers | |||
| Temperature | Range (℃ / ℉) | Amb. +5 to 80 / Amb. +9 to 176 | ||
| Fluctuation 1) at 37℃ (±℃ / ℉) | 0.2 / 0.36 | |||
| Variation 1) at 37℃ (±℃ / ℉) | 0.5 / 0. | |||
| Dimension (W×D×H) |
Interior (mm / inch) | 400×360×420 / 15.7×14.2×16.5 ×4 Chambers |
||
| Exterior (mm / inch) | 1170×640×1360 / 46.1×25.2×53.5 | |||
| Net Weight (Kg / lbs) | 170 / 374.8 | |||
| Electrical Requirements (230V, 50 / 60Hz) | 4.1A×2EA | |||
| Cat. No. | AAH2A015K | |||
| Electrical Requirements (120V, 50 / 60Hz) | 7.5A×2EA | |||
| Cat. No. | AAH2A016U | |||
-
Wire Shelves
Stainless steel and electropolished shelves are readily removed without using tools for easy cleaning.Cat. No. Models Description (Per Each Chamber) Included Maximum W×L (mm / inch) EDA8136 IB-02G-2C 2 8 366×316 / 14.4×12.4
-
Perforated Shelves
Stainless steel shelves are readily removed without using tools for easy cleaning.
Cat. No. Models Description (Per Each Chamber) Maximum W×L (mm / inch) AAA12531 IB-02G-2C 8 366×316 / 14.4×12.4
