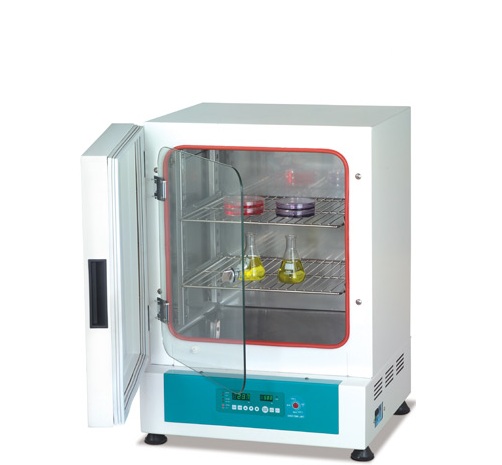

JEIOTECH IB-01E Incubators (3~60℃, 65L)
Chamber Volume (L / cu ft) :65/2.3
Temperature Range (℃ / ℉) Amb. 3~60 /
Fluctuation at 37℃ (±℃ / ℉)0.2 / 0.36
Variation at 37℃ (±℃ / ℉) 0.15 / 0.27
Dimension (W×D×H) Internal (mm / inch) 423×355×445 /
Overall (mm / inch) 533×475×725 /
Net Weight (kg / lbs) 33 / 72.8
Electrical Requirements (230V, 50 / 60Hz) 1.1A
Cat. No. AAH26015K
Phụ kiện tùy chọn:
Wire Shelves
Stainless steel and electropolished shelves are readily removed without using tools for easy cleaning.
-
Cat. No. Models Description Included Maximum W×L (mm / inch) EDA8136 IB-05G 2 8 366×316 / 14.4×12.4 EDA8135 IB-15G 2 12 446×366 / 17.6×14.4 EDA8137 IB-25G 2 12 576×419 / 22.7×16.5 EDA8136 IB-01E 2 11 366×316 / 14.4×12.4 EDA8220 IB-11E 2 14 466×490 / 17.6×19.3 EDA8219 IB-21E 2 15 566×466 / 22.3×17.6 EDA8219 IL-11 / 11A 2 12 566×466 / 22.3×17.6 EDA8219 IL-11-4C 8 48 566×466 / 22.3×17.6 EDA8220 IL-21 / 21A 3 26 466×490 / 17.6×19.3 EDA8223 ILP-02 1 6 195×310 / 7.7×12.2 EDA8221 ILP-12 2 11 305×299 / 12×11.8 EDA8235 SIF-5000 / R 2 8 416×406 / 16.4×16.0 EDA8233 SIF-6000 / R 2 11 516×506 / 20.3×19.9
-
Perforated Shelves
Stainless steel shelves are readily removed without using tools for easy cleaning.
Cat. No. Models Description Maximum W×L (mm / inch) AAA12531 IB-05G 8 366×316 / 14.4×12.4 AAA12532 IB-15G 12 446×366 / 17.6×14.4 AAA12535 IB-25G 12 576×419 / 22.7×16.5 AAA12531 IB-01E 11 366×316 / 14.4×12.4 AAA22522 IB-11E 14 466×490 / 17.6×19.3 AAA22521 IB-21E 15 566×466 / 22.3×17.6 AAA22521 IL-11 / 11A 12 566×466 / 22.3×17.6 AAA22521 IL-11-4C 48 566×466 / 22.3×17.6 AAA22522 IL-21 / 21A 26 466×490 / 17.6×19.3 AAA24501 ILP-02 6 195×310 / 7.7×12.2 AAA24502 ILP-12 11 305×299 / 12×11.8
-
Stacking Kits
Stackable 2 steps up to maximize space efficiency with exclusive stacking kits.
(Only for IB-G, IB-E series)Cat. No. Models Description AAA21521 IB-05G Stacking kits for stackable chambers AAA21522 IB-15G Stacking kits for stackable chambers AAA21523 IB-25G Stacking kits for stackable chambers AAA26501 IB-01E Stacking kits for stackable chambers AAA26502 IB-11E Stacking kits for stackable chambers AAA26503 IB-21E Stacking kits for stackable chambers
Operating Features
- Temperature control: +3°C above ambient to 60°C.
- Microprocessor PID control.
- Simple calibration and auto-tuning functions.
- Digital timer with delayed ON/OFF function: 1 min to 99 hr 59 min.
- High temperature limit setting and open door alarm.
- Convenient preset function for 3 most commonly used temperature settings.
- Intuitive control panel with bright LED display (0.1℃ resolution) and touch-sensitive keypad.
Constructional Features
- Vibration-free design ideal for yeast cultivation.
- Compact and lightweight design with completely sealed gasket.
- Stackable up to 2 units using the optional stacking kit. (optional)
- Convenient sample monitoring without affecting chamber temperature via the inner tempered-glass door.
- Detachable shelves and round-cornered chamber interior allowing easy cleaning.
| Model | IB-01E | IB-11E | IB-21E | |
|---|---|---|---|---|
| Chamber Volume (L / cu ft) | 65 / 2.3 | 150 / 5.3 | 205 / 7.2 | |
| Temperature | Range (℃ / ℉) | Amb. +3 to 60 / Amb. +5.4 to 140 | ||
| Fluctuation 1) at 37℃ (±℃ / ℉) | 0.2 / 0.36 | 0.3 / 0.54 | 0.1 / 0.18 | |
| Variation 1) at 37℃ (±℃ / ℉) | 0.6 / 1.08 | 0.8 / 1.44 | 1.1 / 1.98 | |
| Dimension (W×D×H) |
Interior (mm / inch) | 423×355×445 / 16.7×14×17.5 |
500×515×585 / 19.7×20.3×23 |
623×515×630 / 24.5×20.3×24.8 |
| Exterior (mm / inch) | 533×475×725 / 21×18.7×28.5 |
595×630×865 / 23.5×24.8×34 |
||
