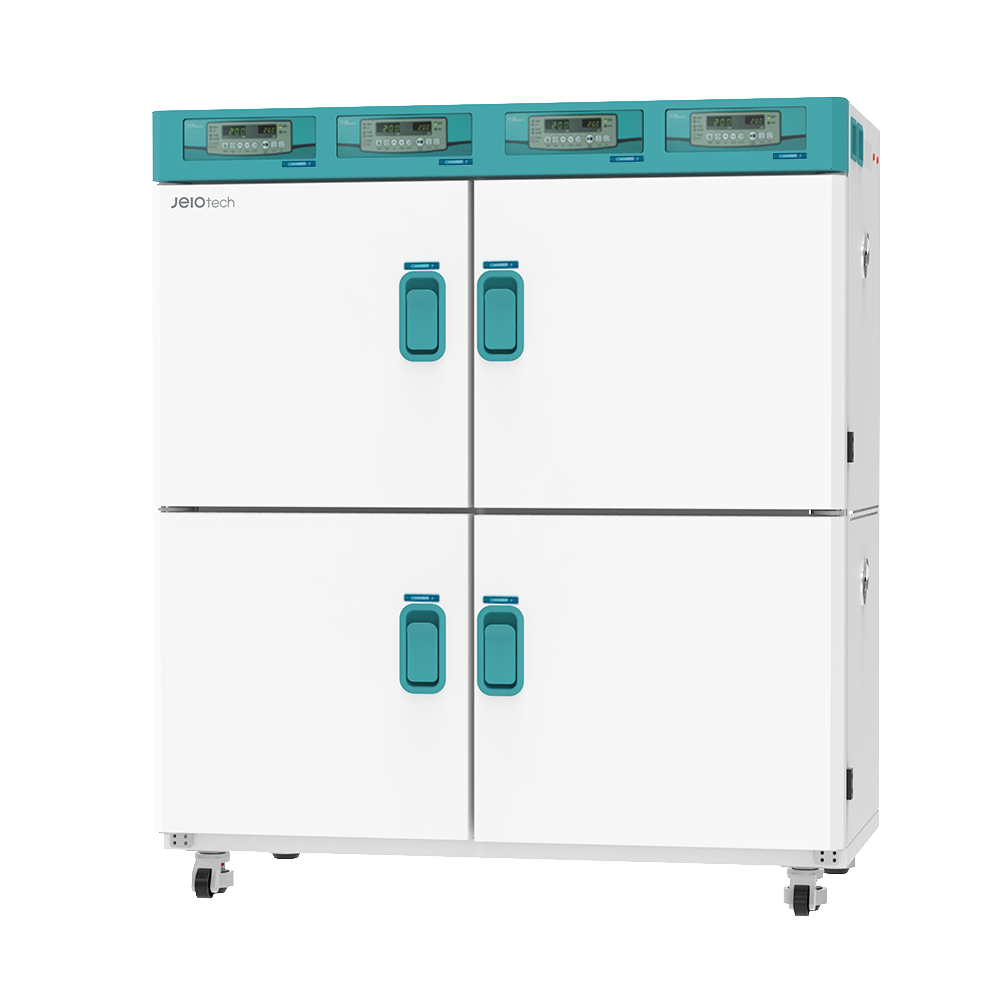

JEIOTECH OF-02G-4C Forced Convection Ovens (4 Chambers, 4x60L, 200℃)

ManufacturerJEIOtech(View more products from this manufacturer)
ModelOF-02G-4C
P/NAAH1A015K
USD 6,753.60
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available

Microprocessor PID control
Delayed ON/OFF digital timer range: 1 min ~ 99 hr 59 min
Intuitive control panel with bright LED display (0.1℃ resolution) and touch-sensitive keypad
High temperature limit setting and open door alert
Convenient presetting function for 3 most commonly used temperature settings
Forced air by fan
Chamber volume: 4x60L
Temperature Range: Amb. +10 to 250 ℃
Temperature Fluctuation: ±0.5 ℃ at 100℃
Temperature Variation: ±1.0 ℃ at 100℃
Dimension Interior: 4x(400×360×420mm)
Dimension Exterior: 1170x640x1360mm
Weight: 170 kg
Power: 230V-50/60Hz/ 8.6A x 2
Include: 2 Wire Shelves per chamber

Download Cataloge Jeiotech

Operational Features

  • Microprocessor PID control
  • Simple calibration and auto-tuning function
  • Temperature control: 10°C above ambient to 200°C
  • Delayed ON/OFF digital timer range: 1 min ~ 99 hr 59 min
  • Intuitive control panel with bright LED display (0.1℃ resolution) and touch-sensitive keypad
  • High temperature limit setting and open door alert
  • Convenient presetting function for 3 most commonly used temperature settings



Constructional Features

  • Forced air convection generated by a noiseless and powerful sirocco fan ensuring optimal air circulation, temperature uniformity, and short heat-up time.
  • Rounded inner chamber corners for easy cleaning and optimal airflow
  • Corrosion-resistant incoloy sheath heating element and stainless steel interior
  • Adjustable four slide vents for controlling inner vapor circulation (diameter: 38mm/1.5”)
  • Wire shelf

    Wire shelf


    Stainless steel and electro polished shelf system is removed easily without using tools for easy cleaning.

    Models Description Cat. No.
    Included Maximum W×L(mm/inch)
    OF-02G-4C 8 32 366×316 / 14.4X12.4 EDA8136
    OF-12G 2 12 446×366 / 17.6X14.4 EDA8135
    OF-22G 2 14 516×416 / 20.3X16.4 EDA8134
    ON-02G 2 8 366×316 / 14.4X12.4 EDA8136
    ON-12G 2 12 446×366 / 17.6X14.4 EDA8135
    ON-22G 2 12 576×419 / 22.7X16.5 EDA8137
    OF/ ON-01E 2 10 366×316 / 14.4X12.4 EDA8136
    OF/ ON-11E 2 14 446×366 / 17.6X14.4 EDA8135
    OF/ ON-21E 2 15 576×419 / 22.7X16.5 EDA8137
    OF-300G 2 17 708 x 608 / 27.9 x 23.9 RTD1196
    OF-450G 3 26 708 x 608 / 27.9 x 23.9 RTD1196
    OF-750G 3 35 708 x 808 / 27.9 x 31.8 RTD1197
    OF-300H 2 17 708 x 608 / 27.9 x 23.9 RTD1196
    OF-450H 3 26 708 x 608 / 27.9 x 23.9 RTD1196
    OF-750H 3 35 708 x 808 / 27.9 x 31.8 RTD1197

    Perforated shelf


    Stainless steel shelf system is removed easily without using tools for easy cleaning.

    Models Description Cat. No.
    Maximum
    W×L(mm/inch)
    OF-02G-4C 32 366×316 / 14.4X12.4 AAA12531
    OF-12G 12 446×366 / 17.6X14.4 AAA12532
    OF-22G 14 516×416 / 20.3X16.4 AAA12533
    ON-02G 8 366×316 / 14.4X12.4 AAA12531
    ON-12G 12 446×366 / 17.6X14.4 AAA12532
    ON-22G 12 576×419 / 22.7X16.5 AAA12535
    OF/ ON-01E 10 365×316 / 14.4X12.4 AAA12531
    OF/ ON-11E 14 445×366 / 17.6X14.4 AAA12532
    OF/ ON-21E 15 575×419 / 22.7X16.5 AAA12535
    OF-300G 17 708 x 608 /
    27.9 x 23.9    		 AAA80604-2
    OF-450G 26 708 x 608 /
    27.9 x 23.9    		 AAA80604-2
    OF-750G 35 708 x 808 /
    27.9 x 31.8    		 AAA80604-3
    OF-300H 17 708 x 608 /
    27.9 x 23.9    		 AAA80604-2
    OF-450H 26 708 x 608 /
    27.9 x 23.9    		 AAA80604-2
    OF-750H 35 708 x 808 /
    27.9 x 31.8    		 AAA80604-3


    Recorders


    Easy recognizable digital recorders for efficient temperature indicating.

    Models Description Cat. No.
    OF -300, 450, 750 G/W Recorder (6 Point) AAA8T500
    Recorder (Thermal Line type) AAAE1503
