Product image

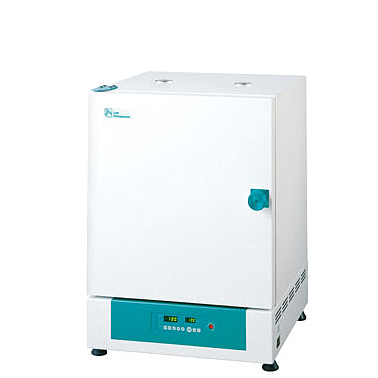

JEIOTECH ON-01E Forced Convection Ovens (52L, 220 ℃)

ManufacturerJEIOtech(View more products from this manufacturer)
ModelON-01E
P/NAAH15015K
OriginKorea
Warranty12 months
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available

Microprocessor PID control
Delayed ON/OFF digital timer range: 1 min ~ 99 hr 59 min
Intuitive control panel with bright LED display (0.1℃ resolution) and touch-sensitive keypad
High temperature limit setting and open door alert
Convenient presetting function for 3 most commonly used temperature settings
Forced air
Chamber volume: 52 L
Temperature Range: Amb. +10 to 220 ℃
Temperature Fluctuation: ±0.3 ℃ at 100℃
Temperature Variation: ±6.5 ℃ at 100℃
Dimension Interior: 375×370×370mm
Dimension Exterior: 530×535×737mm
Weight: 34 kg
Power: 230V-50/60Hz/4.3A
Include: 2 Wire Shelves



Download Cataloge Jeiotech

Operational Features

  • Microprocessor PID control
  • Simple calibration and auto-tuning function
  • Temperature control: 15°C above ambient to 220°C
  • Delayed ON/OFF digital timer range: 1 min ~ 99 hr 59 min
  • Intuitive and easy-to-operate control panel with bright LED display (1℃ resolution) and touch-sensitive keypad
  • High temperature limit setting and open door alert
  • Convenient presetting function for 3 most commonly used temperature settings
  • Corrosion-resistant incoloy sheath heating element and stainless steel interior
  • Adjustable dual slide vents for controlling inner vapor circulation (diameter: 38mm/1.5”)



Model

ON-01E

ON-11E

ON-21E

Chamber volume (L/cu ft)

52 / 1.8

100 / 3.5

150 / 5.3

Temperature

Range(℃/℉)

Amb. +15 to 220 / Amb. +27 to 428

Fluctuation1)(±℃/℉)at 100℃

0.3 / 0.54

0.4 / 0.72

0.5 / 0.9

Variation1)(±℃/℉)at 100℃

6.5 / 11.7

4.1 / 7.38

7.3 / 13.14

Dimension

Interior dimensions
(W x D x H) (mm/inch)

375×370×370
/ 14.8x14.6x14.6

455×430×510
/ 18.0x17.0x20.0

585×460×555
/ 23.0x18.1x21.9

Exterior dimensions
(W x D x H) (mm/inch)

530×535×737
/ 20.9x21.1x29.0

610×595×877
/ 24.0x23.4x34.5

740×625×922
/ 29.1x24.6x36.3

Net weight(Kg/lbs)

34 / 75

46 / 101.4

59 / 130

Electrical Requirements (230V)

50/60Hz, 4.3A

50/60Hz, 6.0A

50/60Hz, 7.4A

Cat. No.

AAH15015K

AAH15025K

AAH15035K

Electrical Requirements (120V)

50/60Hz, 6.7A

50/60Hz, 8.3A

50/60Hz, 10.0A

Cat. No.

AAH15016U

AAH15026U

AAH15036U



Option

Wire shelf

Wire shelf


Stainless steel and electro polished shelf system is removed easily without using tools for easy cleaning.

Models Description Cat. No.
Included Maximum W×L(mm/inch)
OF-02G 2 8 366×316 / 14.4X12.4 EDA8136
OF-12G 2 12 446×366 / 17.6X14.4 EDA8135
OF-22G 2 14 516×416 / 20.3X16.4 EDA8134
ON-02G 2 8 366×316 / 14.4X12.4 EDA8136
ON-12G 2 12 446×366 / 17.6X14.4 EDA8135
ON-22G 2 12 576×419 / 22.7X16.5 EDA8137
OF/ ON-01E 2 10 366×316 / 14.4X12.4 EDA8136
OF/ ON-11E 2 14 446×366 / 17.6X14.4 EDA8135
OF/ ON-21E 2 15 576×419 / 22.7X16.5 EDA8137
OF-300G 2 17 708 x 608 / 27.9 x 23.9 RTD1196
OF-450G 3 26 708 x 608 / 27.9 x 23.9 RTD1196
OF-750G 3 35 708 x 808 / 27.9 x 31.8 RTD1197
OF-300H 2 17 708 x 608 / 27.9 x 23.9 RTD1196
OF-450H 3 26 708 x 608 / 27.9 x 23.9 RTD1196
OF-750H 3 35 708 x 808 / 27.9 x 31.8 RTD1197
Perforated shelf

Perforated shelf


Stainless steel shelf system is removed easily without using tools for easy cleaning.

Models Description Cat. No.
Maximum
W×L(mm/inch)
OF-02G 8 366×316 / 14.4X12.4 AAA12531
OF-12G 12 446×366 / 17.6X14.4 AAA12532
OF-22G 14 516×416 / 20.3X16.4 AAA12533
ON-02G 8 366×316 / 14.4X12.4 AAA12531
ON-12G 12 446×366 / 17.6X14.4 AAA12532
ON-22G 12 576×419 / 22.7X16.5 AAA12535
OF/ ON-01E 10 365×316 / 14.4X12.4 AAA12531
OF/ ON-11E 14 445×366 / 17.6X14.4 AAA12532
OF/ ON-21E 15 575×419 / 22.7X16.5 AAA12535
OF-300G 17 708 x 608 /
27.9 x 23.9		 AAA80604-2
OF-450G 26 708 x 608 /
27.9 x 23.9		 AAA80604-2
OF-750G 35 708 x 808 /
27.9 x 31.8		 AAA80604-3
OF-300H 17 708 x 608 /
27.9 x 23.9		 AAA80604-2
OF-450H 26 708 x 608 /
27.9 x 23.9		 AAA80604-2
OF-750H 35 708 x 808 /
27.9 x 31.8		 AAA80604-3


Recorders


Easy recognizable digital recorders for efficient temperature indicating.

Models Description Cat. No.
OF -300, 450, 750 G/W Recorder (6 Point) AAA8T500
Recorder (Thermal Line type) AAAE1503
