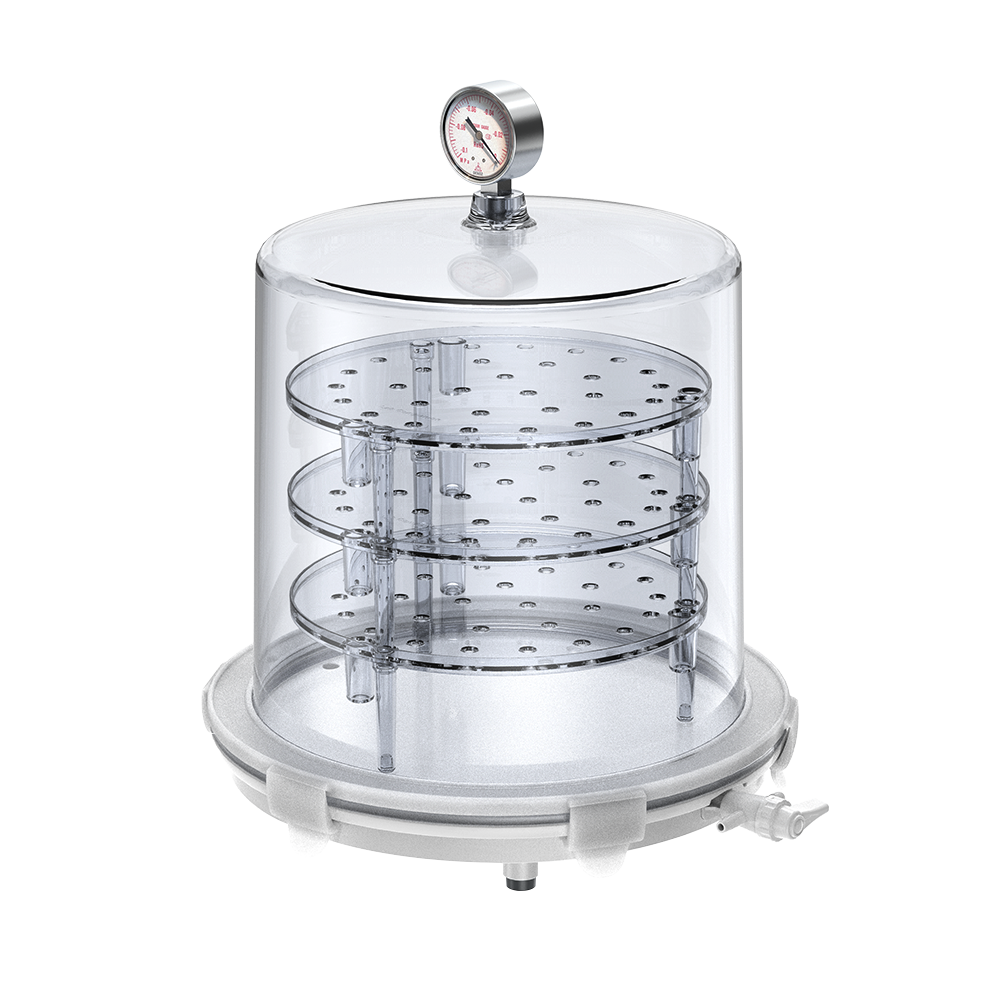

JEIOTECH VDP-30U Vacuum Desiccators (25L / 0.9)

Internal Volume (L / cu ft) :25 /0.9

Gauge Range (Mpa) 0 to -0.1 (Analog)

Nozzle (mm / inch, Ø) 9.5 / 0.37

Max. Permissible Vacuum (bodies) 1.33×10-4 Mpa (Analog)

Material

Bodies PC (Polycarbonate)

Perforated Sample Tray PC (Polycarbonate)

Drying Agent Tray / Locker PP (Polypropylene)

Vacuum Seal Silicone Rubber

Dimension: Ø387 x 384 mm

Net Weight(kg ): 4.0 kg

Cat. No. : UV block effect body (U)

Brochure

Manual

Model 1)		VDP-25/25G VDP-25U/25UG	VDP-30/30G VDP-30U/30UG
Internal volume (L / cu ft)		16 / 0.6	25 / 0.9
Gauge range (Mpa)		0 to -0.1
Nozzle (mm / inch, Ø)		9.5 / 0.37
Max. permissible vacuum (Bodies)		1.33×10-4 Mpa
Material	Body / Base	Polycarbonate
	Perforated sample tray
	Locker	Polypropylene
	Vacuum seal	Silicone rubber
Dimension (I.D. × H)	Exterior (mm / inch)	Ø308×374(449) / Ø12.1×14.7(17.7)	Ø385×384(459) / Ø15.2×15.1(18.1)
	Net weight (kg / lbs)	2.7 / 5.9	4.0 / 8.8
Cat. No.	Clear body	AAAD3011	AAAD3021
	Clear body with Vacuum gauge (G)	AAAD3111	AAAD3121
	UV block effect body (U)	AAAD3211	AAAD3221
	UV block effect body with Vacuum gauge (UG)	AAAD3311	AAAD3321
