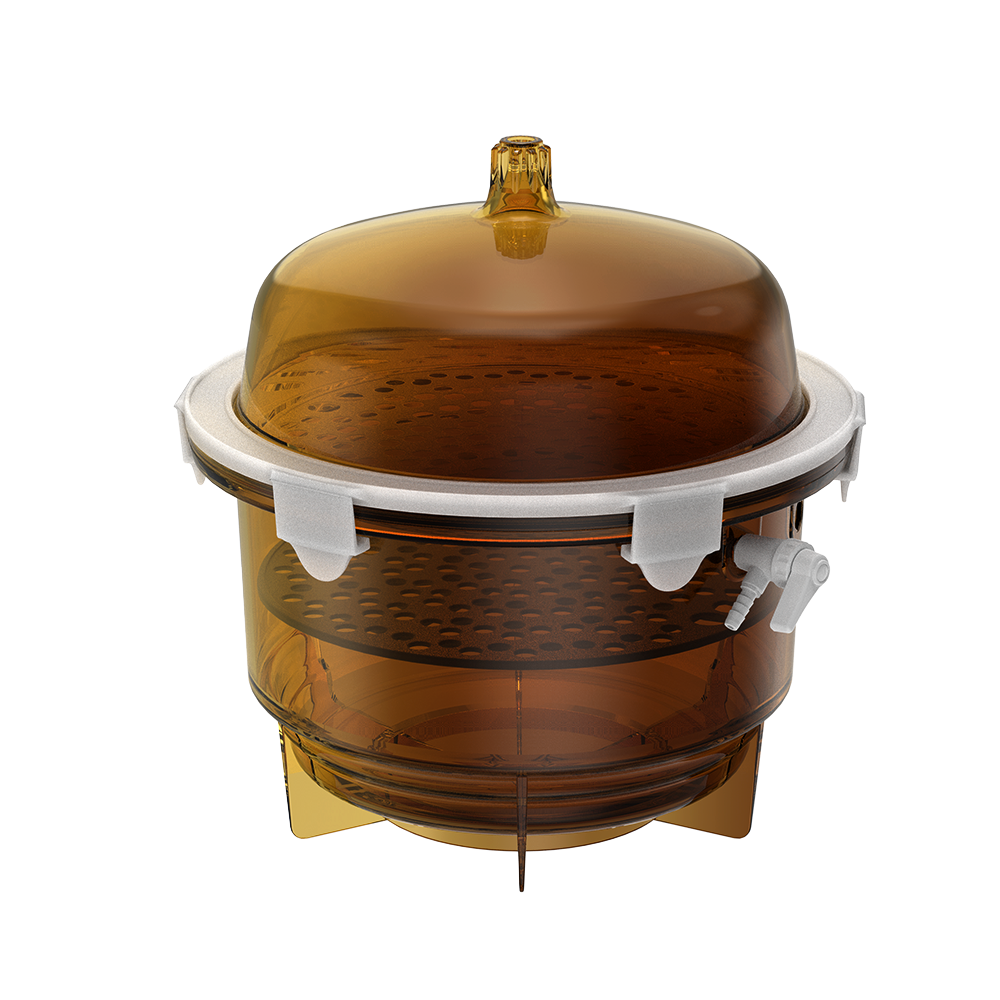

JEIOTECH VDR-30U Vacuum Desiccator (20L/0.7)

Internal Volume (L / cu ft) :20 /0.7

Gauge Range (Mpa) 0 to -0.1

Nozzle (mm / inch, Ø) 9.5 / 0.37

Max. Permissible Vacuum (bodies) 1.33×10-4 Mpa (Analog)

Material

Bodies PC (Polycarbonate)

Perforated Sample Tray PC (Polycarbonate)

Drying Agent Tray / Locker PP (Polypropylene)

Vacuum Seal Silicone Rubber

Dimension (W×D×H): Ø385×399mm , 4.2 kg

Cat. No. : UV block effect body (U) AAAD2231

Brochure

Manual

Model 1)		VDR-20/20G VDR-20U/20UG	VDR-25/25G VDR-25U/25UG	VDR-30/30G VDR-30U/30UG
Internal volume (L / cu ft)		6 / 0.2	10 / 0.4	20 / 0.7
Gauge range (Mpa)		0 to -0.1
Nozzle (mm / inch, Ø)		9.5 / 0.37
Max. permissible vacuum (Bodies)		1.33×10-4 Mpa
Material	Lid / Bottom	Polycarbonate
	Perforated sample tray	Polypropylene
	Drying agent tray
	Locker	Polypropylene
	Vacuum seal	Silicone rubber
Dimension (I.D. × H)	Exterior (mm / inch)	Ø242×279(354) / Ø9.5×11(13.9)	Ø308×325(400) / Ø12.1×12.8(15.7)	Ø385×399(475)  / Ø15.2×15.7(18.7)
	Net weight (kg / lbs)	1.5 / 3.3	2.5 / 5.5	4.2 / 9.3
Cat. No.	Clear body	AAAD2011	AAAD2111	AAAD2211
	Clear body with vacuum gauge (G)	AAAD2021	AAAD2121	AAAD2221
	UV block effect body (U)	AAAD2031	AAAD2131	AAAD2231
	UV block effect body with Vacuum gauge (UG)	AAAD2041	AAAD2141	AAAD2241
