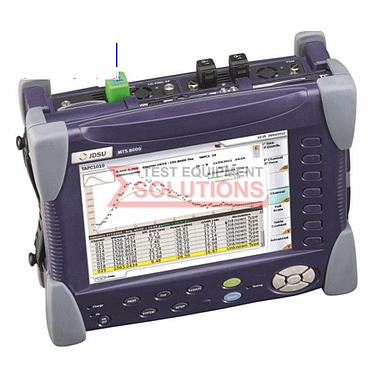

JDSU MTS 8000 Optical fiber network test OTDR ( 160 km , Multimode , SingleMode 850, 1310 , 1490, 1550,1625 , 1650 nm, FTTx , CWDM / DWDM )

Applicable fiber: SingleMode , Multimode

Optical connector: ST/SC/DIN/LC

Wavelength (nm): 850, 1310,1490, 1550 , 1625 , 1650 nm±20nm

Dynamic Range:45 dB

Dead Zone: 0.5m tới 4 m

Accuracy: ±0,5 m, ±0.5 Db

Resolution:0,01

Memory and logging function: 1000 data,

Digital distance fault indication

Storage Capability: 1000 traces

Automatic measurement with threshold level

LSA measurement

Power: 220VAC,19 VDC

Return Loss

Size: 326cm X 267cm X 93cm, 4,3 kg

Operation Temperature, Humidity: 0°C to +40°C, 95%

Datasheet
